Details
Characteristics
| range compatibility | PacDrive 3 | |
|---|---|---|

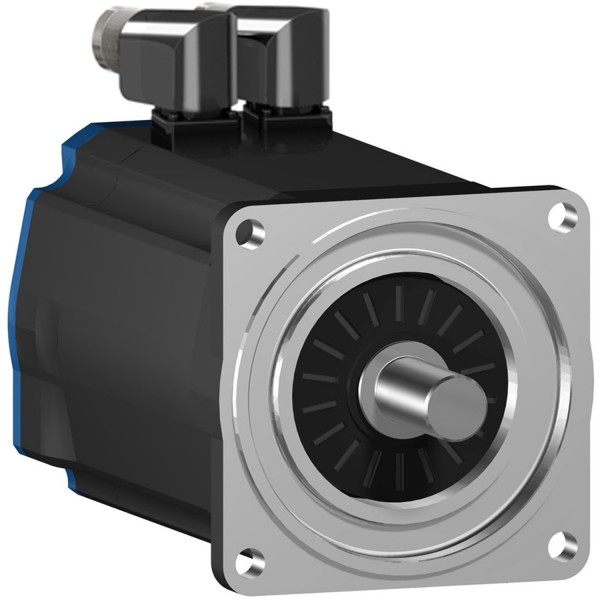

| product or component type | Servo motor | |
| device short name | SH3.....P |
| maximum mechanical speed | 6000 rpm | |
|---|---|---|
| [Us] rated supply voltage | 115...480 V | |
| network number of phases | Three phase | |
| continuous stall current | 4.8 A | |
| continuous stall torque | 5.8 N.m at 115...480 V three phase | |
| continuous power | 1900 W | |
| peak stall torque | 18.3 N.m at 115...480 V three phase | |
| nominal output power | 580 W at 115 V three phase1090 W at 230 V three phase1930 W at 400 V three phase2210 W at 480 V three phase | |
| nominal torque | 5.5 N.m at 115 V three phase5.2 N.m at 230 V three phase4.6 N.m at 400 V three phase4.4 N.m at 480 V three phase | |
| nominal speed | 1000 rpm at 115 V three phase2000 rpm at 230 V three phase4000 rpm at 400 V three phase4800 rpm at 480 V three phase | |
| maximum current Irms | 17.1 A | |
| shaft end | Parallel key | |
| shaft diameter | 19 mm | |
| shaft length | 40 mm | |
| key width | 6 mm | |
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5IP65 motor: conforming to EN/IEC 60034-5IP65 shaft bushing: conforming to EN/IEC 60034-5 | |
| encoder type | Absolute single turn SinCos Hiperface | |
| speed feedback resolution | 128 periods | |
| holding brake | With | |
| holding torque | 9 N.m | |
| mounting support | International standard flange | |
| motor flange size | 100 mm | |
| torque constant | 1.21 N.m/A at 120 °C | |
| back emf constant | 77 V/krpm at 20 °C | |
| number of motor poles | 4 | |
| rotor inertia | 2.928 kg.cm² | |
| stator resistance | 2.4 Ohm | |
| stator inductance | 19.5 mH | |
| maximum radial force Fr | 990 N at 1000 rpm790 N at 2000 rpm690 N at 3000 rpm620 N at 4000 rpm | |
| maximum axial force Fa | 160 N | |
| type of cooling | Natural convection | |
| length | 234.5 mm | |
| centring collar diameter | 95 mm | |
| centring collar depth | 3.5 mm | |
| number of mounting holes | 4 | |
| mounting holes diameter | 8.5 mm | |
| circle diameter of the mounting holes | 115 mm | |
| net weight | 6.3 kg |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
