Characteristics
| range compatibility | PacDrive 3 | |
|---|---|---|

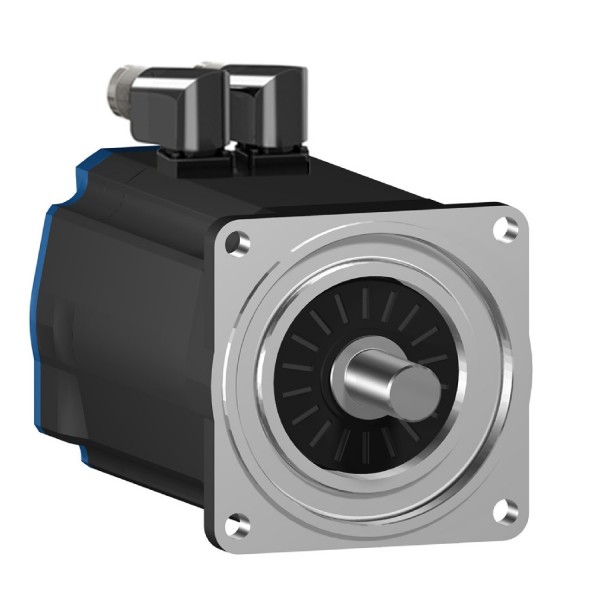

| product or component type | Servo motor | |
| device short name | SH3.....P |
| maximum mechanical speed | 4000 rpm | |
|---|---|---|
| [Us] rated supply voltage | 115...480 V | |
| network number of phases | Three phase | |
| continuous stall current | 17.6 A | |
| continuous stall torque | 27.8 N.m at 115...480 V three phase | |
| continuous power | 4100 W | |
| peak stall torque | 90.2 N.m at 115...480 V three phase | |
| nominal output power | 1940 W at 115 V three phase3330 W at 230 V three phase4050 W at 400 V three phase3430 W at 480 V three phase | |
| nominal torque | 24.7 N.m at 115 V three phase21.2 N.m at 230 V three phase12.9 N.m at 400 V three phase9.1 N.m at 480 V three phase | |
| nominal speed | 750 rpm at 115 V three phase1500 rpm at 230 V three phase3000 rpm at 400 V three phase3600 rpm at 480 V three phase | |
| maximum current Irms | 61 A | |
| shaft end | Parallel key | |
| shaft diameter | 24 mm | |
| shaft length | 50 mm | |
| key width | 8 mm | |
| IP degree of protection | IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5IP65 motor: conforming to EN/IEC 60034-5IP65 shaft bushing: conforming to EN/IEC 60034-5 | |
| encoder type | Absolute single turn SinCos Hiperface | |
| speed feedback resolution | 128 periods | |
| holding brake | Without | |
| mounting support | International standard flange | |
| motor flange size | 140 mm | |
| torque constant | 1.58 N.m/A at 120 °C | |
| back emf constant | 105 V/krpm at 20 °C | |
| number of motor poles | 5 | |
| rotor inertia | 17.94 kg.cm² | |
| stator resistance | 0.4 Ohm | |
| stator inductance | 7.72 mH | |
| maximum radial force Fr | 2420 N at 1000 rpm1920 N at 2000 rpm1670 N at 3000 rpm | |
| maximum axial force Fa | 300 N | |
| type of cooling | Natural convection | |
| length | 327.5 mm | |
| centring collar diameter | 130 mm | |
| centring collar depth | 3.5 mm | |
| number of mounting holes | 4 | |
| mounting holes diameter | 11 mm | |
| circle diameter of the mounting holes | 165 mm | |
| net weight | 21.3 kg |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
