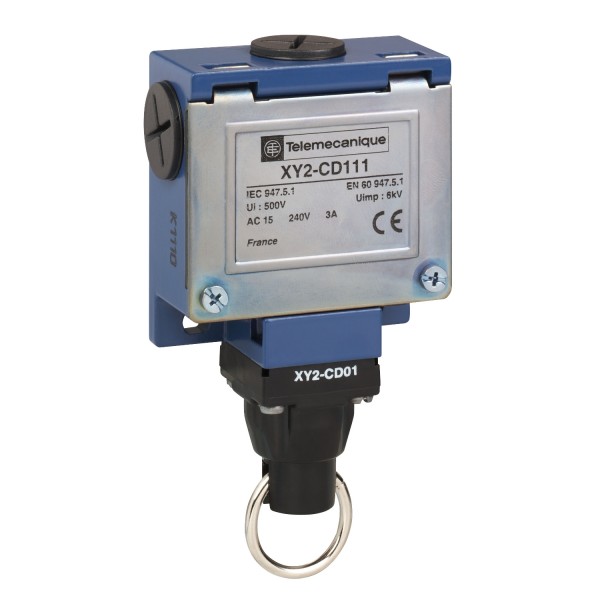

SIMPLE CABLE PULL SWITCH 240VAC 10A XY2CD

Ülevaaded: 0

Tootekood: XY2CD111

Quick Overview

Saadavus: Tellimisel

65,66 € (ilma KM-ta)

Details

Main
range of product
Preventa XY2
product or component type
Simple rope pull switch
device short name
XY2CD
housing colour
Blue
overvoltage category
Class I conforming to EN/IEC 61140
Class I conforming to NF C 20-030
Complementary
trigger cable maximum length
6 m
body material
Zamak
head material
Plastic
[Us] rated supply voltage
240 V
contacts type and composition
1 NC + 1 NO
contact operation
Snap action
Resistance to wrenching
237 daN operating head
36 daN operating ring
cable entry number
3 3 entries tapped for Pg 13.5 cable gland for Pg 13.5
mechanical durability
1500000 cycles
[Ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
400 V (pollution degree 3) conforming to EN/IEC 60947-1
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
compatibility code
XY2CD
Environment
product certifications
CCC
CE
ambient air temperature for operation
-20…70 °C
IP degree of protection
IP66 conforming to IEC 60529
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Environmental Disclosure
