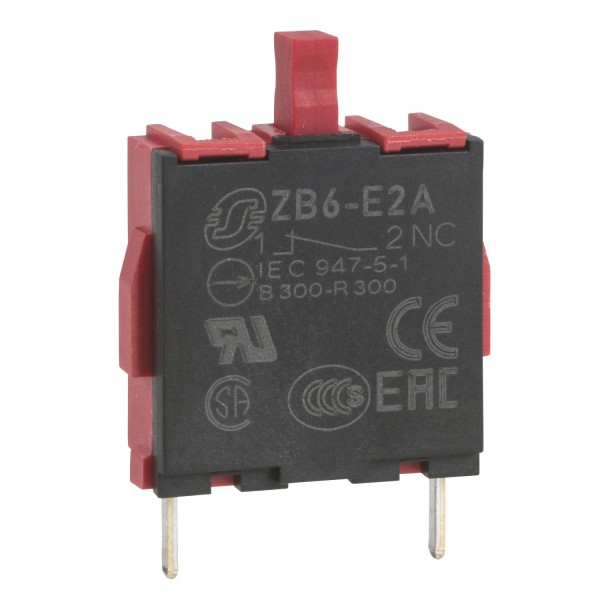

single contact block for head Ø16 1NC pins for PCB

Ülevaaded: 0

Tootekood: ZB6E2A

Quick Overview

Saadavus: Tellimisel

4,30 € (ilma KM-ta)

Details

Main
range of product
Harmony XB6
product or component type
Contact block
device short name
ZB6
sale per indivisible quantity
10
contacts type and composition
1 NC
contact operation
Slow-break
contact block type
Single
connections - terminals
Pins for printed circuit board
contacts material
Silver alloy (Ag/Ni)
Complementary
terminals description ISO n°1
(1-2)NC
net weight
0.004 kg
positive opening
With conforming to EN/IEC 60947-5-1 appendix K
operating travel
1 mm (NC changing electrical state)
3.5 mm (total travel)
operating force
2.5 N NC changing electrical state
mechanical durability
5000000 cycles
short-circuit protection
6 A cartridge fuse type gG
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
EN/IEC 60947-1 4 kV
[Ie] rated operational current
3 A at 120 V, AC-15, B300
1.5 A at 240 V, AC-15, B300
0.1 A at 250 V, DC-13, R300
0.22 A at 125 V, DC-13, R300
electrical durability
1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
electrical reliability
Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN/IEC 60947-5-4
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
IP degree of protection
IP65 conforming to IEC 60529
standards
UL 508
JIS C 4520
EN/IEC 60947-1
CSA C22.2 No 14
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C 852
product certifications
CCC
CSA
UL
GOST
vibration resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
