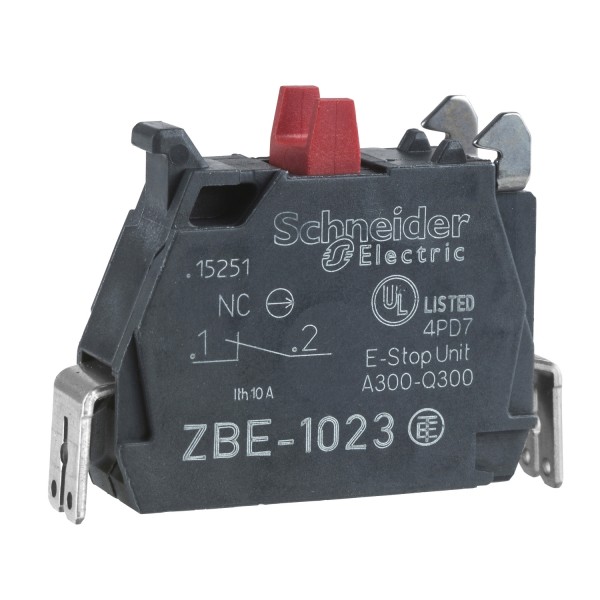

single contact block for head Ø22 1NC silver alloy Faston connector

Ülevaaded: 0

Tootekood: ZBE1023

Quick Overview

Saadavus: Tellimisel

2,72 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
Harmony XB4
product or component type
Contact block
device short name
ZBE
sale per indivisible quantity
5
IP degree of protection
IP20 IEC 60529
contacts type and composition
1 NC
contact operation
Slow-break
contact block type
Single
contacts usage
Standard contacts
connections - terminals
Faston connector 1 x 6.35 mm
Faston connector 2 x 2.8 mm
Complementary
net weight
0,011 kg
positive opening
With EN/IEC 60947-5-1 appendix K
operating travel
1,5 mm NC changing electrical state)
4,3 mm total travel)
operating force
2 N NC changing electrical state
mechanical durability
10000000 cycles
contacts material
Silver alloy (Ag/Ni)
[Ui] rated insulation voltage
250 V 3)EN 60947-1
electrical reliability
Λ < 10exp(-7), 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8), 5 mA in clean environment EN/IEC 60947-5-4
mounting of block
Front mounting
condition of use
Mounting on push-button collar
electrical composition code
C1 9)
C2 7)
C3 6)
C4 4)
C5 5)
C6 3)
C7 4)
C8 2)
C9 3)
C12 6)
M1 6)
M2 4)
M3 4)
M5 2)
M6 2)
M7 6)
M8 4)
M9 2)
SF1 3)
SF2 2)
MF1 2)
MF2 2)
C10 2)
M4 2)
C13 1)
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
standards
EN/IEC 60947-1
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-5-1
UL 508
EN/IEC 60947-5-4
JIS C8201-1
product certifications
DNV
UL
CSA
LROS (Lloyds register of shipping)
RINA
GL
BV
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
