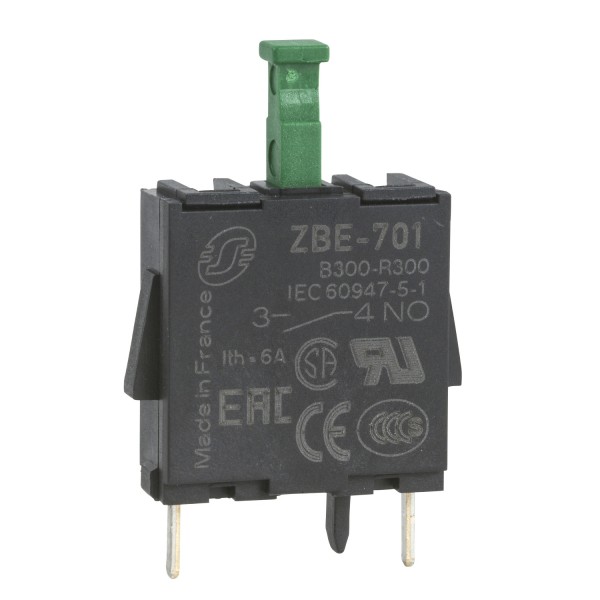

single contact block for head Ø22 1NO gold flashed pins for PCB

Ülevaaded: 0

Tootekood: ZBE7016

Quick Overview

Saadavus: Ei saa enam tellida

9,93 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
Harmony XB4
product or component type
Contact block
device short name
ZBE
sale per indivisible quantity
5
IP degree of protection
IP20 conforming to IEC 60529
contacts type and composition
1 NO
contact operation
Slow-break
contact block type
Single
contacts usage
Low power switching contacts
connections - terminals
Pins for printed circuit board
Complementary
net weight
0.012 kg
positive opening
Without
operating travel
2.6 mm (NO changing electrical state)
4.3 mm (total travel)
operating force
2.3 N NO changing electrical state
mechanical durability
500000 cycles
contacts material
Gold flashed (Ag/Ni/Au) contacts
electrical reliability
Λ < 5 x 10exp(-8), 1 mA in clean environment conforming to EN/IEC 60947-5-4
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
standards
CSA C22.2 No 14
EN/IEC 60947-1
UL 508
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C8201-5-1
JIS C8201-1
product certifications
GL
DNV
UL
LROS (Lloyds register of shipping)
CSA
BV
RINA
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
