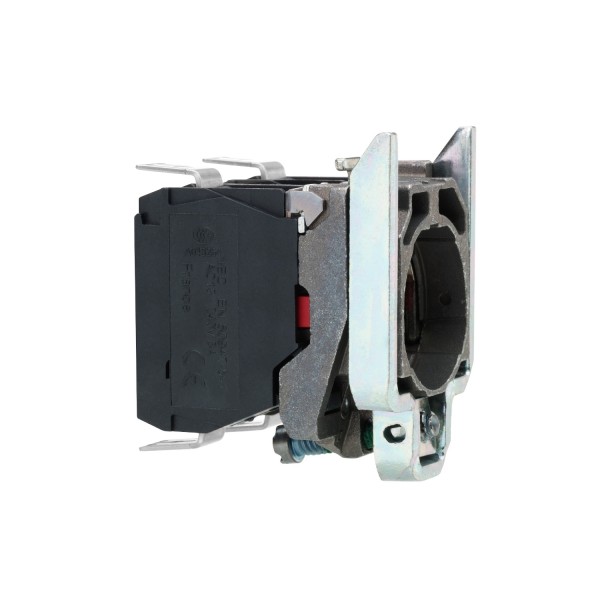

single contact block with body/fixing collar 2NO faston connector

Product was successfully added to your shopping cart.

single contact block with body/fixing collar 2NO faston connector

Tootekood: ZB4BZ1033

Quick Overview

Saadavus: Tellimisel

12,24 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB4
product or component type	Complete body/contact assembly
device short name	ZB4
fixing collar material	Zamak
sale per indivisible quantity	1
head type	Standard
contacts type and composition	2 NO
contact operation	Slow-break
contact block type	Single
device composition	Fixing collar Body
connections - terminals	Faston connector, connection size: 1 x 6.35 mm Faston connector, connection size: 2 x 2.8 mm

Complementary
CAD overall width	30 mm
CAD overall height	47 mm
CAD overall depth	37 mm
terminals description ISO n°1	(13-14)NO
net weight	0.062 kg
contacts usage	Standard contacts
positive opening	Without
operating travel	2.6 mm (NO changing electrical state) 4.3 mm (total travel)
operating torque	0.05 N.m NO changing electrical state
mechanical durability	5000000 cycles
contacts material	Silver alloy (Ag/Ni)
[Ui] rated insulation voltage	250 V (pollution degree 3) conforming to EN 60947-1
electrical durability	10000000 cycles
electrical reliability	Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
IP degree of protection	IP20 conforming to IEC 60529
standards	UL 508 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-5 JIS C8201-1
product certifications	LROS (Lloyds register of shipping) RINA DNV GL BV CSA UL
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
