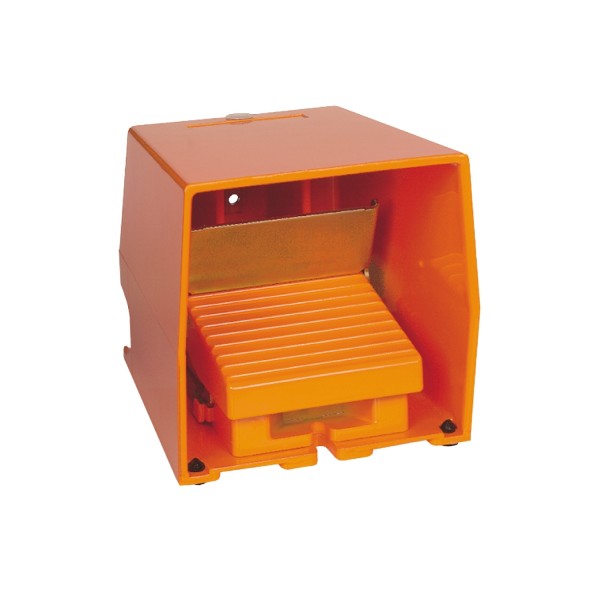

single foot switch - IP66 - with cover - metallic - orange - 2 NC + 2 NO

Ülevaaded: 0

Tootekood: XPER711

Quick Overview

Saadavus: Tellimisel

133,26 € (ilma KM-ta)

Details

Main
range of product
Harmony XPE
product or component type
Foot switch
material
Metal
foot switch type
Single foot switch
device short name
XPER
provided equipment
Cover
trigger mechanism
With trigger mechanism
contact operation
2 steps
contacts type and composition
2 NC + NO
colour
Orange
Complementary
positive opening
With EN/IEC 60947-5-1 appendix K
connections - terminals
Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
cable entry
2 entries tapped for Pg 16 cable gland
mechanical durability
15000000 cycles
[Ie] rated operational current
3 A, 240 V, AC-15, A300
0,27 A, 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
500 V 3)EN/IEC 60947-1
500 V 3)NF C 20-040 group C
500 V 3)VDE 0110 group C
300 VUL 508
300 VCSA C22.2 No 14
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-1
maximum resistance across terminals
25 MOhm IEC 60255-7 category 3
25 MOhm NF C 93-050 method A
short-circuit protection
10 A cartridge fuse gG EN/IEC 60947-5-1
10 A cartridge fuse gG VDE 0660-200
rated operational power in W
10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0,5 EN/IEC 60947-5-1 appendix C
4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0,5 EN/IEC 60947-5-1 appendix C
7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0,5 EN/IEC 60947-5-1 appendix C
net weight
2,59 kg
Environment
standards
NF E 09-031
product certifications
FIMKO
protective treatment
TC
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn 10…500 Hz)IEC 60068-2-6
shock resistance
150 gn NF E 09-031
20 gn IEC 60068-2-27
overvoltage category
Class I EN/IEC 61140
Class I NF C 20-030
IP degree of protection
IP66 IEC 60529
IP669 NF C 20-010
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
