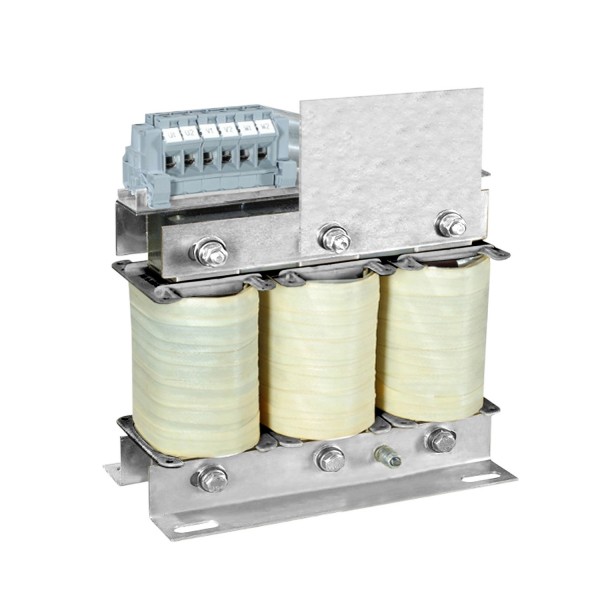

sinus filter - 240 A - for Altivar variable speed drive

Details

Main
product or component type	Sinus filter
range compatibility	Altivar 61 Altivar 71
product specific application	Output filter
[In] rated current	240 A
thermal losses	1500 W at 100 Hz
product compatibility	ATV61HC11Y ATV61HC13Y ATV61HC16Y ATV61HC20Y ATV71HC11Y ATV71HC13Y ATV71HC16Y
switching frequency	4...8 kHz
maximum output frequency	100 Hz
maximum permissible voltage	690 V AC

Complementary
electrical connection	Bare wires diameter: 11 mm
maximum voltage drop at rated load	10 %
max current	1.5 x nominal current (duration = 60 s)
net weight	210 kg

Environment
IP degree of protection	IP00
environmental characteristic	3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3
pollution degree	2 conforming to EN 50178
vibration resistance	1 gn (f= 13…200 Hz) conforming to IEC 60068-2 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2
shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
relative humidity	0…95 %
ambient air temperature for operation	40…50 °C (with current derating 1.5 % per °C) -10…40 °C (without current derating)
ambient air temperature for storage	-40…65 °C
operating altitude	<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m
