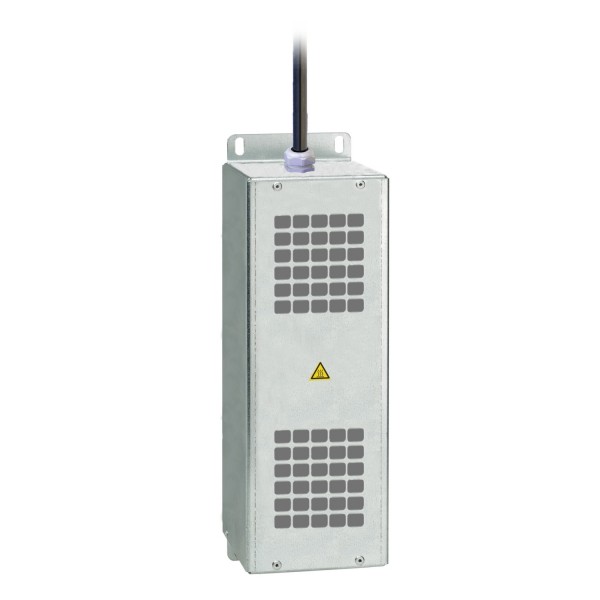

sinus filter - 66 A - for Altivar variable speed drive

Ülevaaded: 0

Tootekood: VW3A5204

Quick Overview

Saadavus: Ei saa enam tellida

2 680,07 € (ilma KM-ta)

Details

Main
product or component type
Sinus filter
range compatibility
Altivar 71
Altivar 61
product specific application
Output filter
[In] rated current
66 A
thermal losses
180 W 100 Hz
product compatibility
ATV61HD11M3X
ATV61HD15M3X
ATV61HD18N4
ATV61HD22N4
ATV61HD30N4
ATV61WD18N4
ATV61WD18N4C
ATV61WD22N4
ATV61WD22N4C
ATV61WD30N4
ATV61WD30N4C
ATV71HD11M3X
ATV71HD15M3X
ATV71HD18N4
ATV71HD22N4
ATV71HD30N4
ATV71WD18N4
ATV71WD22N4
ATV71WD30N4
switching frequency
4...8 kHz
maximum output frequency
100 Hz
maximum permissible voltage
500 V AC
Complementary
maximum motor cable length
1000 m 18,5 kW 400 V
1000 m 22 kW 400 V
1000 m 30 kW 400 V
electrical connection
Terminal 25 mm² / AWG 2, 4 N.m
maximum voltage drop at rated load
10 %
max current
1.5 x nominal current 60 s)
net weight
45 kg
Environment
IP degree of protection
IP20
environmental characteristic
3B1 IEC 721-3-3
3C2 IEC 721-3-3
3S1 IEC 721-3-3
pollution degree
2 EN 50178
vibration resistance
1 gn 13…200 Hz)IEC 60068-2
1.5 mm peak to peak 3…13 Hz)IEC 60068-2
shock resistance
15 gn 11 ms IEC 60068-2-27
relative humidity
0…95 %
ambient air temperature for operation
40…50 °C with current derating 1.5 % per °C)
-10…40 °C without current derating)
ambient air temperature for storage
-40…65 °C
operating altitude
<= 1000 m without current derating
1000...3000 m with current derating 1 % per 100 m
Offer Sustainability
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
