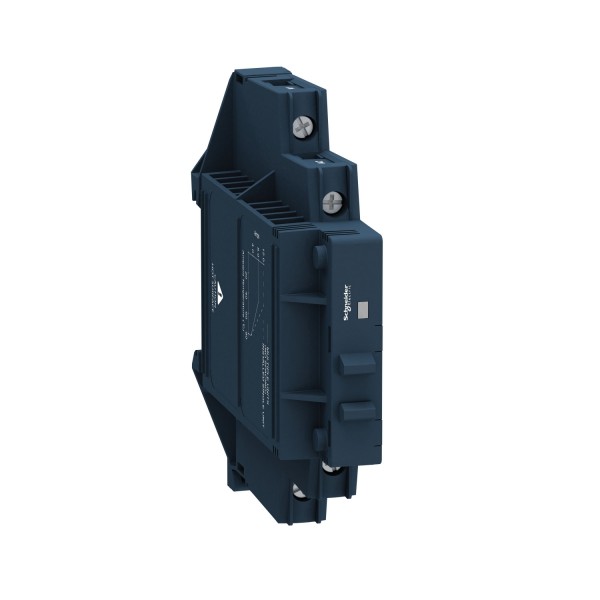

Solid state modular relay, 12 A, zero voltage switching, input 4...32 V DC, output 24...280 V AC

Details

Complementary
mounting support	Symmetrical DIN rail
[In] rated current	12 A
output voltage	24...280 V AC
[Uc] control circuit voltage	4...32 V DC
contacts type and configuration	1 NO
tightening torque	0.5...0.8 N.m input 0.5...0.8 N.m output
connections - terminals	Screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input Screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
maximum capacitance	10 pF input/output
insulation resistance	1000 MOhm 500 V DC
local signalling	Input status LED green)
minimum switching voltage	4 V DC turn-on
maximum switching voltage	1 V DC turn-off
input current	9…11 mA
solid state output type	Zero voltage switching SCR output
load current	0,15…12 A
transient overvoltage	600 V
surge current	715 A 16.6 ms 750 A 20 ms
maximum voltage drop	<1,3 V on-state
motor power hp	0,33 hp 40 °C 240 V AC
maximum I²t for fusing	2560 A².s 10 ms 50 Hz 2330 A².s 8.33 ms 60 Hz
maximum leakage current	0,1 mA off-state
dV/dt	500 V/µs off-state at maximum voltage
response time	0.5 cycle turn-on) 0.5 cycle turn-off)
power factor	0,5 with maximum load)
overvoltage category	III
width	18 mm
height	90,3 mm
depth	83,7 mm
net weight	0,09 kg

Environment
flame retardance	V0 UL 94
dielectric strength	4 kV AC input/output 4 kV AC input or output to case
pollution degree	2
standards	IEC 60950-1 IEC 61000 IEC 62314
product certifications	UL CSA REACH
marking	CE
IP degree of protection	IP20
ambient air temperature for operation	-30…80 °C
ambient air temperature for storage	-30…100 °C
