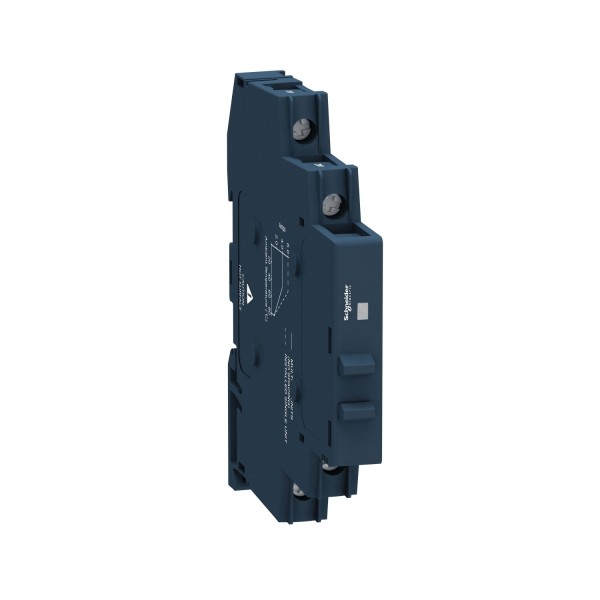

Solid state modular relay, 6 A, DC swtching, input 4...32 V DC, output 1…100 V DC

Details

Complementary
mounting support	Symmetrical DIN rail
[In] rated current	6 A
output voltage	1...100 V DC
[Uc] control circuit voltage	4...32 V DC
contacts type and configuration	1 NO
tightening torque	0.5...0.8 N.m input 0.5...0.8 N.m output
connections - terminals	Screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input Screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
maximum capacitance	10 pF input/output
insulation resistance	1000 MOhm 500 V DC
local signalling	Input status LED green)
minimum switching voltage	4 V DC turn-on
maximum switching voltage	1 V DC turn-off
input current	8…11 mA
solid state output type	Mosfet output DC switching
load current	0,0025…6 A
transient overvoltage	100 V
surge current	60 A 10 ms
maximum voltage drop	<0,6 V on-state
resistance	0,1 Ohm on-state
maximum leakage current	0,1 mA off-state
response time	0.6 ms turn-on) 0.3 ms turn-off)
overvoltage category	III
width	11 mm
height	90,3 mm
depth	83,7 mm
net weight	0,05 kg

Environment
flame retardance	V0 UL 94
dielectric strength	4 kV DC input/output 4 kV DC input or output to case
pollution degree	2
standards	IEC 62314 IEC 61000 IEC 60950-1
product certifications	UL REACH CSA
marking	CE
IP degree of protection	IP20
ambient air temperature for operation	-30…80 °C
ambient air temperature for storage	-30…100 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
