Details
Characteristics

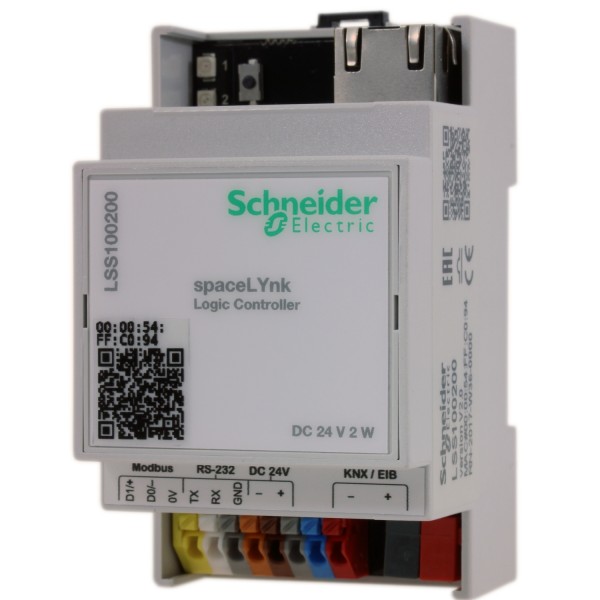

| product name | SpaceLYnk | |
|---|---|---|
| product or component type | Logic controller |
| communication port protocol | ModbusIP (Internet Protocol)BACnetKNX | |
|---|---|---|
| [Us] rated supply voltage | 24 V DC | |
| power consumption in W | 2 W | |
| LED indicator | LED (green)CPU load: LED (green/red)KNX powered/reset: | |
| physical interface | 1 RJ451 RS4851 RS2321 TP-UART2 | |
| port Ethernet | 10BASE-T/100BASE-TX | |
| integrated connection type | 1 USB 2.0 port | |
| control type | RESET push-button | |
| connections - terminals | KNX bus: bus terminal 2 cable(s) 0.8 mm²Power supply: clamp terminal1.5 mm²Serial: clamp terminal1.5 mm² | |
| mounting support | DIN rail | |
| height | 90 mm | |
| width | 52 mm | |
| depth | 58 mm |
| ambient air temperature for operation | -5…45 °C | |
|---|---|---|
| operating altitude | <= 2000 m | |
| relative humidity | 0…93 % | |
| IP degree of protection | IP20 | |
| directives | 2002/96/EC - WEEE directive | |
| standards | IEC 60950-1 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
