Details
Characteristics
| range | Spacial | |
|---|---|---|

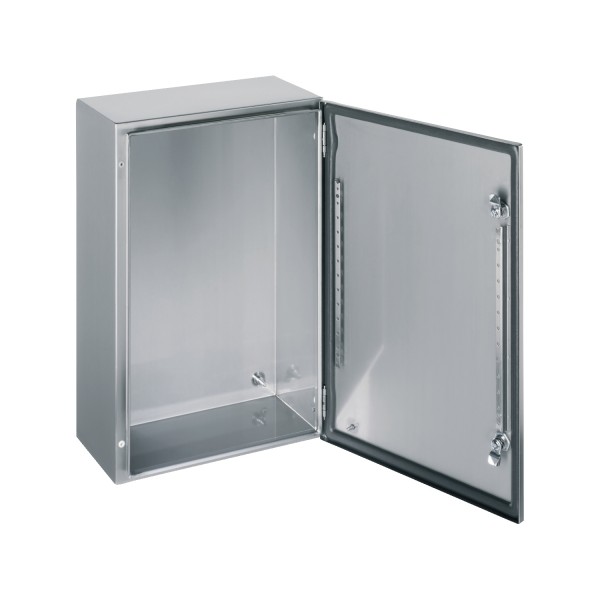

| product name | Spacial S3XEX | |
| enclosure type | ATEX certified application | |
| category | Compact enclosure | |
| nominal height | 500 mm | |
| nominal width | 400 mm | |
| nominal depth | 200 mm | |
| product installation | Wall-mounting | |
| product destination | For potentially explosive atmosphere | |
| device composition | 1 body1 lock: door1 door2 perforated vertical profile drilled: door |
| body type | Single piece body, cross-shaped structureGutter shaped front rail | |
|---|---|---|
| door type | Plain | |
| number of doors | Front face: 1 door(s) | |
| door opening side | Reversible (120 °) | |
| lock type | 2 points lock, 3 mm double-bar | |
| mounting plate description | Without mounting plate | |
| type of gland plate | Without gland plate | |
| accessibility for operation | Front | |
| removable parts | Door by hinges | |
| material | Body and door: stainless steel 304LLock: zamakHinge: stainless steel | |
| surface finish | Body and door: Scotch-Brite® brushedLock: chromium plated | |
| net weight | 8.034 kg |
| standards | EN 60079-7 : 2006EN 61241-1 : 2004EN 61241-0 : 2005EN 60079-0 : 2004 | |
|---|---|---|
| product certifications | LOM 09ATEX3068U | |
| IP degree of protection | IP66 conforming to IEC 60529 (according to the ATEX directive 94/9/EC) | |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Warranty | 18 months |
|---|
