Spacial SF PC rack enclosure - assembled - 1800x600x800 mm

Product was successfully added to your shopping cart.

Spacial SF PC rack enclosure - assembled - 1800x600x800 mm

Tootekood: NSYSF18680PC

Quick Overview

Saadavus: Tellimisel

2 429,31 € (ilma KM-ta)

Qty:

Details

Main
range	Spacial
Extended range	Spacial SF
Application	PC application
product or component type	Suitable enclosure
enclosure nominal height	1800 mm
enclosure nominal width	600 mm
enclosure nominal depth	800 mm
enclosure mounting	Floor-standing
product specific application	Protecting computer equipment
device composition	1 structure 1 roof 2 side panels 1 cable gland plate 1 partial door for keyboard 1 partial door for PC screen 1 partial door for printer support 1 rear door 1 partial door for CPU

Complementary
structure type	Panels and doors built into the structure Perforated structure with a pitch of 25 mm Formed from a single section Vertical uprights joined with top and bottom frames
door type	Plain partial front Glazed partial front Plain rear Hinged plain partial front
number of doors	Front 4 Rear 1
door opening side	Reversible 120 °)

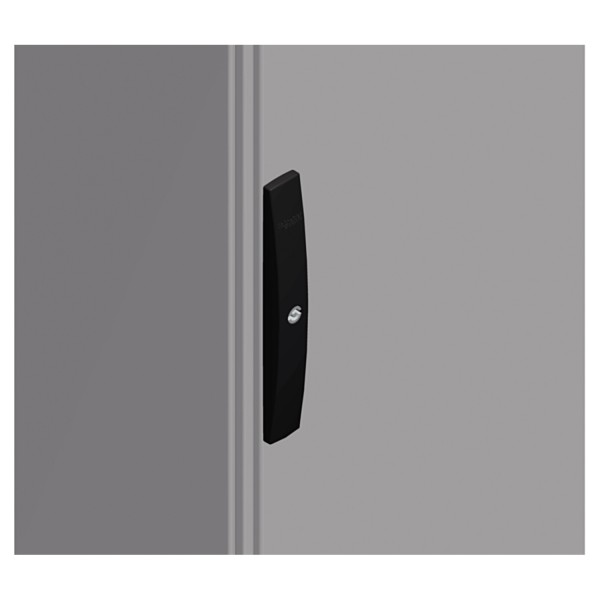

lock type	Flat escutcheon lock, 5 mm double bar rear door Escutcheon lock, 3 mm double bar front partial doors
mounting plate description	Without mounting plate
type of gland plate	Standard
cable entry	1 entry
number of compartiments	4
accessibility for operation	Front Rear Sides of enclosure
removable parts	Roof by screws internally Side panel by screws internally Door by screws hinge
material	Frame galvanised steel Uprights galvanised steel Door sheet steel Panels sheet steel Hinge zamak Escutcheon polyamide 6 with 30 % fibre glass
surface finish	epoxy-polyester powder
colour	Enclosure grey RAL 7035) Handle black RAL 9005)

Environment
standards	IEC 62208
IP degree of protection	IP40 IEC 60529 with hinged keyboard) IP55 without hinged keyboard)
IK degree of protection	IK08 IEC 62262 of transparent door) IK10 IEC 62262 of plain door)

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
