Spacial SFHD outdoor heavy duty - suitable enclosure - H1681 W800 D630 - IP55

Product was successfully added to your shopping cart.

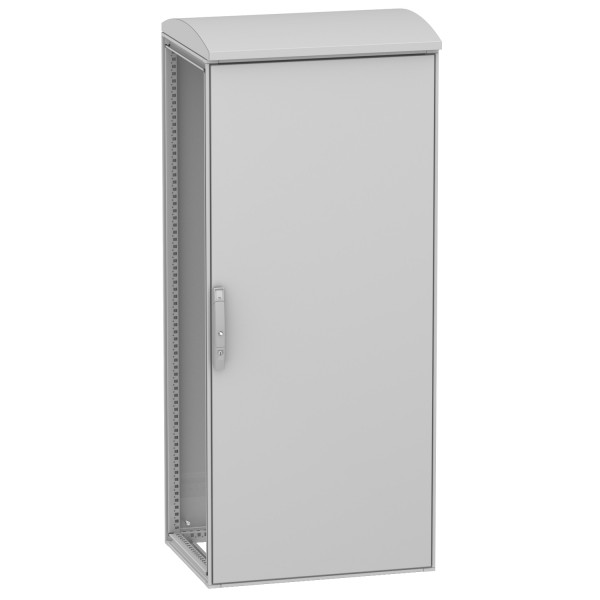

Spacial SFHD outdoor heavy duty - suitable enclosure - H1681 W800 D630 - IP55

Tootekood: NSYSFHD16860

Quick Overview

Saadavus: Tellimisel

1 604,85 € (ilma KM-ta)

Qty:

Details

Main
Range	Spacial
Product	Spacial SFHD
Specific application	Outdoor heavy duty
Certification	Bureau Veritas IEC 61969-3 2011 UL UL 508 A 2007 Bureau Veritas IEC 61439-5 2010 DEKRA IEC 62208 2011 Bureau Veritas ISO 12944 2007
device application	Multi-purpose
product or component type	Suitable enclosure
Enclosure height with canopy	1681 mm
Canopy height	81 mm
enclosure nominal width	800 mm
Enclosure depth with canopy	630 mm
Enclosure depth	600 mm
installation accessory type	Floor-standing
Available functions with accessories	Floor management Suitable for electronic 19" rack Roof management Coupling
device composition	sliding rails 2 mounting plate mounting plate bracket 4 structure 1 locking system with handle and padlock 1 canopy 1 mechanical retainer 1 door roof 1 door 1 Plastic document pocket 1 A4 Aluminium cable gland plate 1

Complementary
structure type	Panels and doors built into the structure Formed from a single section Perforated structure with a pitch of 25 mm Vertical uprights screwed with top and bottom frames
door type	Plain
number of doors	1
door opening side	Reversible 120 °)
lock type	4 points lock, handle with 1242E key lock and padlock front door
mounting plate description	Without mounting plate
Cable gland plate type	Plain aluminium
accessibility for operation	Bottom Sides of enclosure Rear Front Top
Maximum lifting load	1000 kg
removable parts	Mounting plate bracket by screws Sliding rail by screws Rear panel by screws external part Roof by screws Canopy by screws and claws Door by removable axis hinge Cable gland plate fixing nut
material	Frame steel with anti-corrosive coating Hinge zamak
Surface finished painted	On enclosure polyester powder
colour	Enclosure grey RAL 7035) Handle grey RAL 7035)
Specific order possible for special colour	Yes

Environment
standards	IEC 61439-5 IEC 62208 UL 508 A IEC 61969-3
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK10 IEC 62262
climatic withstand	C4H ISO 12944 720 h salt mist
ambient air temperature for operation	-45…80 °C IEC 61969-3 class 1
corrosion withstand	C4H ISO 12944
Environmental withstand	Solar radiation class 1 up to 1120 W/m²IEC 61969-3:2011 Surrounding air withstand class 1 up to 180 km/hIEC 61969-3:2011 Ultraviolet degradation test class 1ISO 4892-2:2013 Formation of ice and frost class 1IEC 61969-3:2011 Fauna and flora withstand class 1IEC 61969-3:2011 Chemical substance class 1IEC 61969-3:2011
Thermal management	Fan 1500 W 60 dB with external cooling 4000 W Natural 2069 W -25 °C Natural 905 W 20 °C Natural 905 W 40 °C according to cooling architecture 1500 W

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
