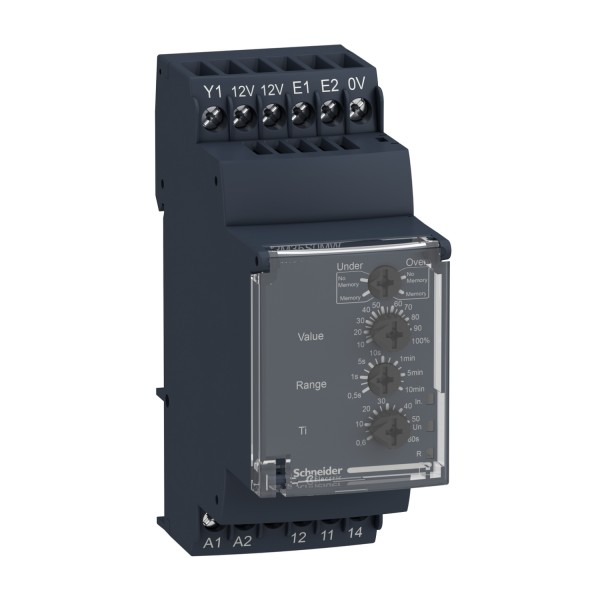

speed control relay RM35-S - 24..240 V AC/DC

Ülevaaded: 0

Tootekood: RM35S0MW

Quick Overview

Saadavus: Tellimisel

80,23 € (ilma KM-ta)

Details

Main
range of product
Zelio Control
product or component type
Modular measurement and control relays
relay type
Speed control relays
relay name
RM35S
relay monitored parameters
Overspeed
Underspeed
time delay range
0.6...60 s adjustable on energisation 0...10 % of the full scale value)
switching capacity in VA
1250 VA
minimum switching current
10 mA 5 V DC
[Us] rated supply voltage
24...240 V AC/DC
maximum power consumption in VA
5 VA AC
measurement range
0.05...0.5 s
0.5...5 min
1...10 min
1...10 s
0.5...5 s
0.1...1 s
0.1...1 min
utilisation category
AC-12 IEC 60947-5-1
AC-13 IEC 60947-5-1
AC-14 IEC 60947-5-1
AC-15 IEC 60947-5-1
DC-12 IEC 60947-5-1
DC-13 IEC 60947-5-1
DC-14 IEC 60947-5-1
Complementary
rest time in memory mode
50 ms contact S2 in memory mode on time delay
1 s supply Un in memory mode on time delay
maximum switching voltage
250 V AC/DC
supply voltage limits
20,4…264 V AC/DC
maximum power consumption in W
3 W DC
width
35 mm
output contacts
1 C/O
contacts material
Cadmium free
nominal output current
5 A
delay at power up
0,05 s
hysteresis
5 % threshold
measurement accuracy
+/- 10 % of the full scale value
repeat accuracy
+/- 0.5 % input and measurement circuit
+/- 0.5 % time delay
measurement error
+/- 0.1 %/°C with temperature variation
< +/- 1 % over the whole range with voltage variation
input frequency
0,0017…20 Hz
response time
15 ms max on crossing the threshold)
polarity
Reversible polarity on DC supply
threshold setting
10...100 %
supply voltage for sensor
11.5...12.5 V
maximum supply current for sensors
40 mA < 24 V AC 25 °C
40 mA < 24 V DC 25 °C
50 mA 24...240 V AC
50 mA 24...240 V DC
impulse duration
>= 5 ms high state
>= 5 ms low state
input compatibility
3-wire sensor (E1) PNP or NPN, 12 V, 50 mA
NAMUR sensor (E2), 12 V, 1,5 kOhm
Voltage input (E1), 0...30 V, 9,5 kOhm >= 4.5 V <= 1 V
Volt-free contact input (E1), 12 V, 9,5 kOhm
marking
CE : EMC 89/336/EEC
CE : 73/23/EEC
overvoltage category
III IEC 60664-1
insulation resistance
> 500 MOhm 500 V DC between supply and relay output IEC 60255-5
> 500 MOhm 500 V DC between measurement and relay output IEC 60664-1
> 1 MOhm 500 V DC between supply and measurement IEC 60255-5
> 500 MOhm 500 V DC between supply and relay output IEC 60664-1
> 500 MOhm 500 V DC between measurement and relay output IEC 60255-5
> 1 MOhm 500 V DC between supply and measurement IEC 60664-1
[Ui] rated insulation voltage
250 V IEC 60664-1
operating voltage tolerance
- 15 % + 10 % Un
supply frequency
50/60 Hz +/- 10 %
operating position
Any position without
connections - terminals
Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end
Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end
Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
tightening torque
0,6…1 N.m IEC 60947-1
housing material
Self-extinguishing plastic
status LED
1 LED green power ON
1 LED yellow inhibit
1 LED yellow relay (R)
mounting support
35 mm symmetrical DIN rail EN/IEC 60715
electrical durability
100000 cycles
mechanical durability
30000000 cycles
operating rate
<= 360 operations/hour full load
Environment
immunity to microbreaks
50 ms
electromagnetic compatibility
Emission standard for industrial environments EN/IEC 61000-6-4
Emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3
Immunity for industrial environments NF EN/IEC 61000-6-2
standards
NF EN 60255-6
IEC 60255-6
product certifications
C-Tick
GOST
UL
GL
CSA
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-20…50 °C
relative humidity
95 % 55 °C IEC 60068-2-30
vibration resistance
0.35 mm 5…57,6 Hz)IEC 60068-2-6/IEC 60255-21-1
1 gn 57,6…150 Hz)IEC 60068-2-6/IEC 60255-21-1
shock resistance
15 gn 11 ms IEC 60255-21-1
IP degree of protection
IP20 IEC 60529 terminals)
IP30 IEC 60529 casing)
pollution degree
3 IEC 60664-1
dielectric test voltage
2 kV AC 50 Hz
non-dissipating shock wave
4 kV
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
