Müüdavad tooted

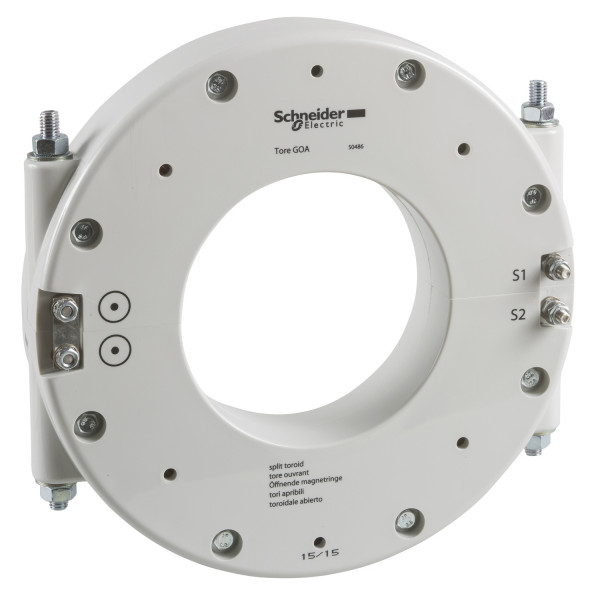

| range | Vigirex | |
|---|---|---|
| device short name | GOA | |
| product or component type | Earth leakage current sensor | |
| device application | Equipment monitoring and control | |
| range compatibility | Vigirex RH plug-in relay | |
| [Ie] rated operational current | 250 A |
| current sensor type | OA type split toroid | |
|---|---|---|
| network type | DCAC | |
| network frequency | 45...440 Hz | |
| [Ui] rated insulation voltage | 1000 V | |
| transformer ratio | 1/1000 | |
| [Icw] rated short-time withstand current | 100 kA 0.5 s | |
| residual short-circuit withstand current | 85 kA / 0.5 s IEC 60947-2 | |
| overvoltage category | IV | |
| [Uimp] rated impulse withstand voltage | 12 kV | |
| mounting mode | Fixed plain backplate)Fixed profiled sheet metal)Fixed slotted backplate) | |
| calorific value | 16.35 MJ | |
| connections - terminals | Screw connection 0,22 mm² | |
| diameter | Inner 110 mm | |
| cable outer diameter | 55 mm 240 mm² | |
| net weight | 3,2 kg | |
| height | 224 mm | |
| width | 224 mm | |
| depth | 44 mm |
| environmental characteristic | Exposure to damp heat not in service 25...55 °C, RH 95 %) 28 cycles IEC 60068-2-30Salt mistKb/2 IEC 60068-2-52Exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56 | |
|---|---|---|
| pollution degree | Level 3 IEC 60664-1 | |
| ambient air temperature for operation | -35…70 °C | |
| ambient air temperature for storage | -55…85 °C |
| Garantii | 18 months |
|---|
