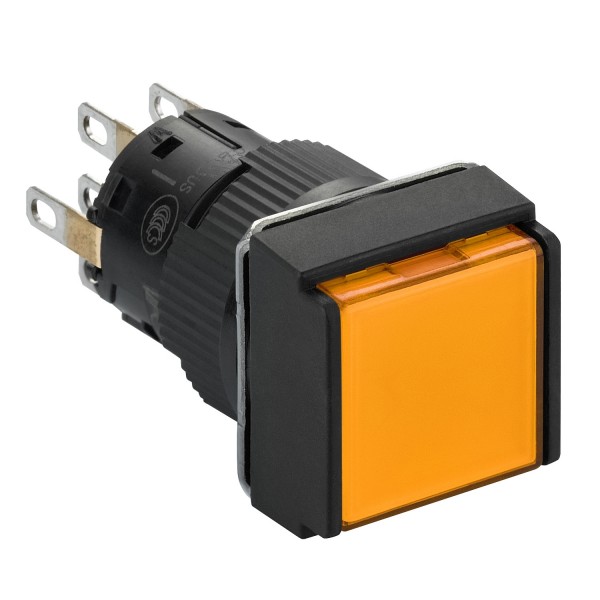

square orange illuminated pushbutton Ø16-flush springreturn-12 VDC polarised-2CO

Product was successfully added to your shopping cart.

square orange illuminated pushbutton Ø16-flush springreturn-12 VDC polarised-2CO

Tootekood: XB6ECW8J2P

Quick Overview

Saadavus: Ei saa enam tellida

21,38 € (ilma KM-ta)

Details

Main
range of product	Harmony XB6E
product or component type	Illuminated monolithic push-button
device short name	XB6E
bezel material	Plastic
mounting diameter	16 mm
sale per indivisible quantity	5
shape of signaling unit head	Square
type of operator	spring return
operator profile	Orange flush
contacts type and composition	2 C/O
contact operation	Snap action
connections - terminals	Insulated faston, connection size: 2.8 x 0.5 mm Solder terminal, clamping capacity: <= 0.75 mm² AWG 19 Fast connector socket
contacts material	Gold-flashed silver
light source	Integral LED
[Us] rated supply voltage	12 V DC polarised

Complementary
net weight	0.006 kg
operating position	Any position
marking	CE
mechanical durability	1000000 cycles
contact resistance	50 mOhm at 1/6 V
short-circuit protection	2 A cartridge fuse type gG
[Ith] conventional free air thermal current	3 A (fast connector socket) 5 A
[Ie] rated operational current	1.5 A at 120 V, AC-12 conforming to EN/IEC 60947-5-1 1 A at 240 V, AC-12 conforming to EN/IEC 60947-5-1 1 A at 24 V, DC-12 conforming to EN/IEC 60947-5-1 0.7 A at 24 V, DC-13 conforming to EN/IEC 60947-5-1 0.2 A at 125 V, DC-12 conforming to EN/IEC 60947-5-1 0.15 A at 125 V, DC-13 conforming to EN/IEC 60947-5-1
electrical durability	100000 cycles, AC, 0.7 A at 220 V conforming to EN/IEC 60947-5-1 appendix C
signalling type	Steady
current consumption	10 mA
service life	30000 h

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-10…55 °C
IP degree of protection	IP65 conforming to IEC 60529
standards	IEC 60947-1 UL 508 CSA C22.2 No 14 JIS C 4520 JIS C 852 IEC 60947-5-1
product certifications	CCC CURus
vibration resistance	1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
