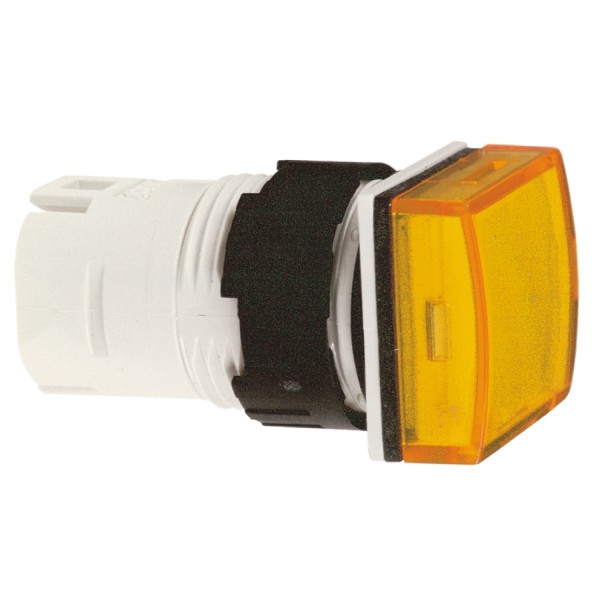

square orange pilot light head Ø16 for integral LED

Ülevaaded: 0

Tootekood: ZB6CV8

Quick Overview

Saadavus: Ei saa enam tellida

3,97 € (ilma KM-ta)

Details

Main
range of product
Harmony XB6
product or component type
Head for pilot light
product compatibility
Integral LED
device short name
ZB6
bezel material
Plastic
mounting diameter
16 mm
sale per indivisible quantity
1
shape of signaling unit head
Square
cap/operator or lens colour
Orange
Complementary
CAD overall width
18 mm
CAD overall height
18 mm
CAD overall depth
33 mm
net weight
0.015 kg
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529
NEMA degree of protection
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
standards
JIS C 4520
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
JIS C 852
UL 508
product certifications
UL
CSA
GOST
CCC
vibration resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
