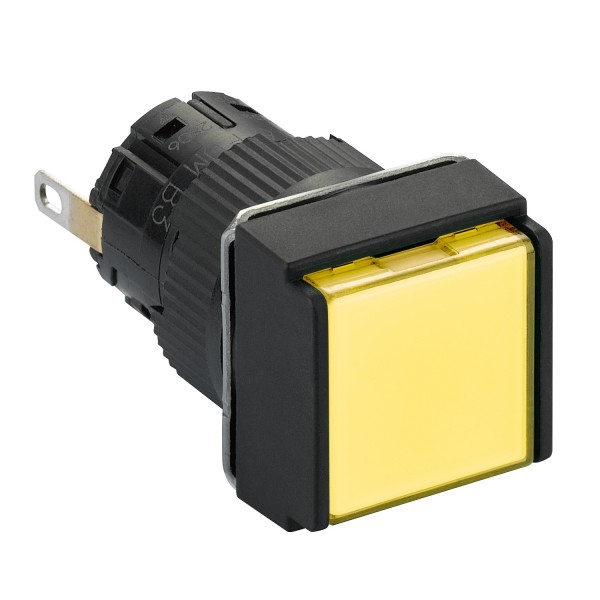

square pilot light Ø16 - IP65 - yellow - integral LED 24VDCpolarised - connector

Product was successfully added to your shopping cart.

square pilot light Ø16 - IP65 - yellow - integral LED 24VDCpolarised - connector

Tootekood: XB6ECV5BP

Quick Overview

Saadavus: Tellimisel

13,97 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB6E
product or component type	Monolithic pilot light
device short name	XB6E
bezel material	Plastic
mounting diameter	16 mm
sale per indivisible quantity	5
shape of signaling unit head	Square
cap/operator or lens colour	Yellow
light source	Integral LED
light block supply	Direct
[Us] rated supply voltage	24 V DC polarised

Complementary
net weight	0.006 kg
overvoltage category	II conforming to IEC 60536
operating position	Any position
marking	CE
connections - terminals	Insulated faston, connection size: 2.8 x 0.5 mm Solder terminal, clamping capacity: <= 0.75 mm² AWG 19 Fast connector socket
tightening torque	0.6…1 N.m
[Ui] rated insulation voltage	250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage	2.5 kV IEC 60947-1
signalling type	Steady
current consumption	10 mA
service life	30000 h

Environment
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-10…55 °C
IP degree of protection	IP65 conforming to IEC 60529
standards	UL 508 CSA C22.2 No 14 JIS C 852 IEC 60947-1 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1
product certifications	CURus CCC
vibration resistance	1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
