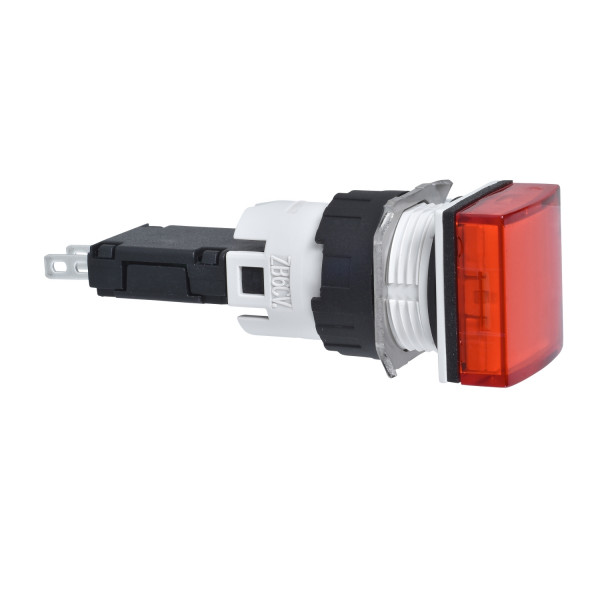

square red complete pilot light Ø16 with integral LED 12...24V

Ülevaaded: 0

Tootekood: XB6CV4BB

Quick Overview

Saadavus: Tellimisel

8,81 € (ilma KM-ta)

Details

Main
range of product
Harmony XB6
product or component type
Complete pilot light
device short name
XB6
bezel material
Plastic
mounting diameter
16 mm
sale per indivisible quantity
1
shape of signaling unit head
Square
cap/operator or lens colour
Red
light source
LED
bulb base
Integral LED
light block supply
Direct
[Us] rated supply voltage
12...24 V AC/DC
Complementary
height
18 mm
width
18 mm
depth
57 mm
terminals description ISO n°1
(+ -)PL
net weight
0,015 kg
operating position
Any position
connections - terminals
Faston connectors 2.8 x 0.5 mm
[Ui] rated insulation voltage
250 V 2)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 60947-1
signalling type
Steady
supply voltage limits
6…30 V AC/DC
current consumption
15 mA
surge withstand
1 kV direct contact IEC 61000-4-5
2 kV in free air IEC 61000-4-5
Environment
protective treatment
TC
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…70 °C
electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50
NEMA 4 UL 50
NEMA 4X UL 50
NEMA 13 CSA C22.2 No 94
NEMA 4 CSA C22.2 No 94
NEMA 4X CSA C22.2 No 94
standards
EN/IEC 60947-5-5
EN/IEC 60947-1
JIS C 852
CSA C22.2 No 14
UL 508
JIS C8201-5-1
EN/IEC 60947-5-1
JIS C8201-1
product certifications
CSA
CCC
GOST
UL
vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients
2 kV IEC 61000-4-4
resistance to electromagnetic fields
10 V/m IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission
Class B EN 55011
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
