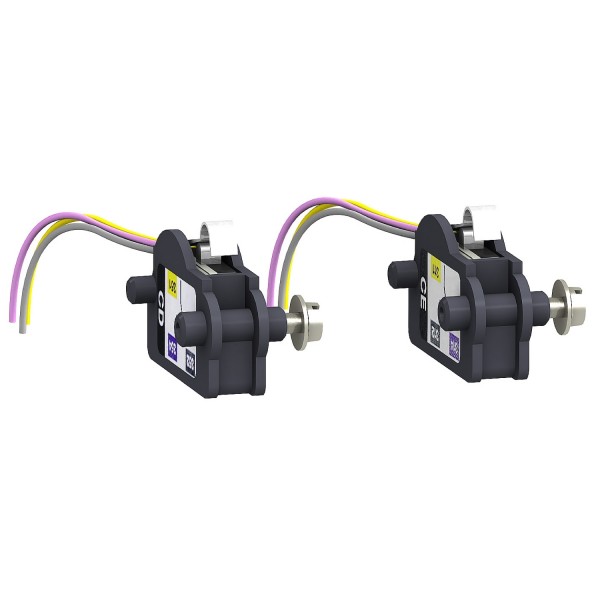

standard auxiliary contact, Compact NSX100/160/250, withdrawable devices, CE and CD contact

Details

Complementary
auxiliary contacts type	Standard
auxiliary contacts operation	CE/CD
mounting mode	Drawout
[Ith] conventional free air thermal current	6 A
[Ie] rated operational current	AC-12 6 A 110 V AC 50/60 Hz AC-12 6 A 220/240 V AC 50/60 Hz AC-12 6 A 24 V AC 50/60 Hz AC-12 6 A 380/440 V AC 50/60 Hz AC-12 6 A 48 V AC 50/60 Hz AC-12 6 A 480 V AC 50/60 Hz AC-12 6 A 660/690 V AC 50/60 Hz AC-15 0,1 A 660/690 V AC 50/60 Hz AC-15 1,5 A 480 V AC 50/60 Hz AC-15 2 A 380/440 V AC 50/60 Hz AC-15 4 A 220/240 V AC 50/60 Hz AC-15 5 A 110 V AC 50/60 Hz AC-15 6 A 24 V AC 50/60 Hz AC-15 6 A 48 V AC 50/60 Hz DC-12 0,3 A 250 V DC DC-12 0,6 A 110 V DC DC-12 2,5 A 48 V DC DC-12 6 A 24 V DC DC-14 0,03 A 250 V DC DC-14 0,05 A 110 V DC DC-14 0,2 A 48 V DC DC-14 1 A 24 V DC
minimum load	100 mA 24 V DC
quantity per set	2

Offer Sustainability
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
