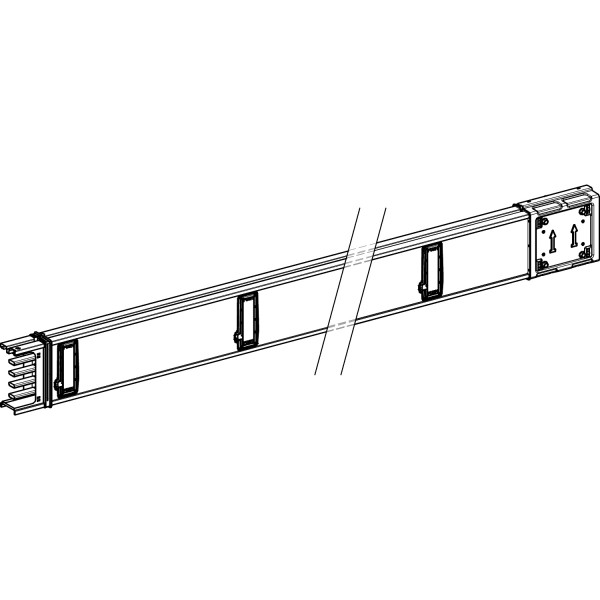

STRAIGHT DISTRIBUTION LENGTH 2M 400 A

Details

Main
range of product	Canalis
product name	KS
product or component type	Busbar trunking
busbar description	Distribution length
BAR MATERIAL	Aluminium
device application	Medium power distribution
[Ie] rated operational current	400 A 35 °C
number of tap-off outlets	8

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	690 V
[Icw] rated short-time withstand current	18,8 kA
[Ipk] rated peak withstand current	49,2 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	1 µT
thermal stress limit	354 kA².s
THDI	0…15 % 400 A 15…33 % 315 A 33…100 % 250 A
maximum voltage drop	<0,022 V 0,9 50 Hz with 1A for 100 m long <0,022 V 0,8 50 Hz with 1A for 100 m long <0,021 V 0,7 50 Hz with 1A for 100 m long <0,018 V 1 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting position	Horizontal
neutral position	Up
busbar trunking polarity	3L + PEN 3L + N + PE
dimension type	Fix
width	146 mm
depth	54 mm
length	2 m
net weight	13,9 kg

Environment
standards	IEC 61439-6 IEC 60439-2

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu	Halogeenivaba toode

Contractual warranty
Garantii	18 months
