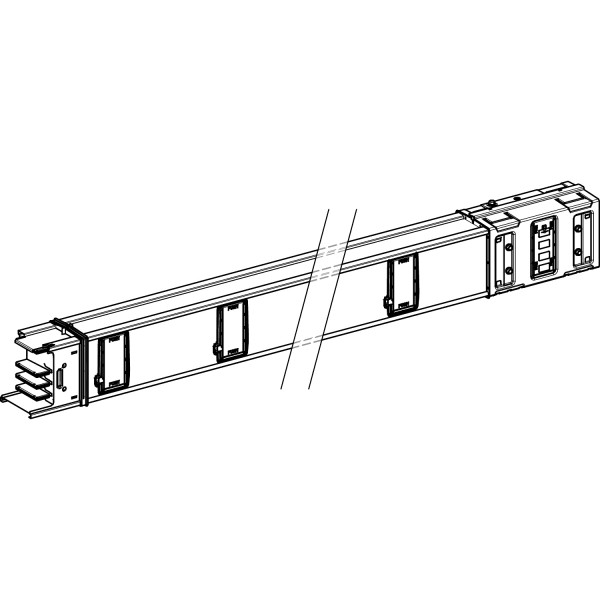

STRAIGHT DISTRIBUTION LENGTH 5M 500 A

Details

Main
range of product	Canalis
product name	KS
product or component type	Busbar trunking
busbar description	Distribution length
BAR MATERIAL	Aluminium
device application	Medium power distribution
[Ie] rated operational current	500 A 35 °C
number of tap-off outlets	10

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	690 V
[Icw] rated short-time withstand current	26,2 kA
[Ipk] rated peak withstand current	55 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	0,66 µT
thermal stress limit	733 kA².s
THDI	0…15 % 500 A 15…33 % 400 A 33…100 % 315 A
maximum voltage drop	<0,013 V 1 50 Hz with 1A for 100 m long <0,014 V 0,9 50 Hz with 1A for 100 m long <0,014 V 0,8 50 Hz with 1A for 100 m long <0,013 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting position	Horizontal
neutral position	Up
busbar trunking polarity	3L + N + PE 3L + PEN
dimension type	Fix
width	146 mm
depth	113 mm
length	5 m
net weight	49,55 kg

Environment
standards	IEC 60439-2 IEC 61439-6

Contractual warranty
Garantii	18 months
