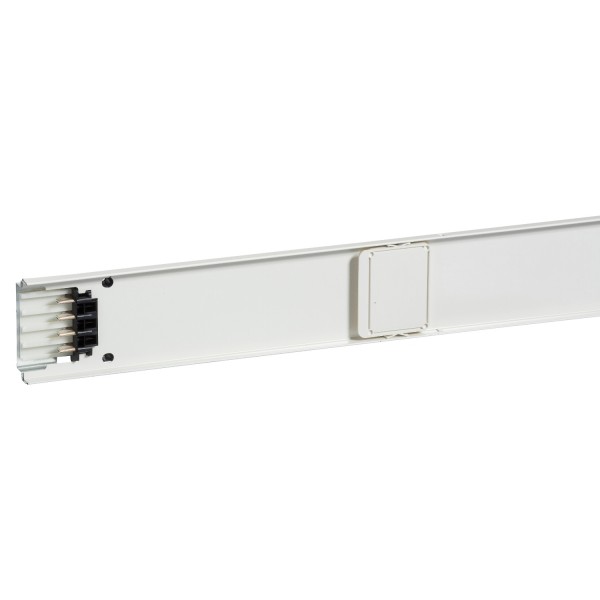

STRAIGHT LENGTH 40 A

Details

Main
range of product	Canalis
product name	KN
product or component type	Busbar trunking
busbar description	Distribution length
device application	Low power distribution
[Ie] rated operational current	40 A 35 °C
busbar trunking polarity	3L + N + PE 3L + PEN
number of tap-off outlets	6
length	3 m

Complementary
[Ue] rated operational voltage	230...500 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV
[Ui] rated insulation voltage	500 V
[Icw] rated short-time withstand current	0,5 kA
[Ipk] rated peak withstand current	6 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	0,039 µT
thermal stress limit	290 kA².s
THDI	0…15 % 40 A 15…33 % 32 A 33…100 % 28 A
maximum voltage drop	<0,516 V 1 50 Hz with 1A for 100 m long <0,474 V 0,9 50 Hz with 1A for 100 m long <0,425 V 0,8 50 Hz with 1A for 100 m long <0,376 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
neutral position	Up
number of circuits	1
control type	Communicating
standards	IEC 61439-6 IEC 60439-2
width	92 mm
depth	27,5 mm
colour	White RAL 9001)
net weight	5,6 kg

Environment
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK08 IEC 62262
ambient air temperature for operation	0…35 °C 100 % of In) 35…40 °C 97 % of In) 40…45 °C 94 % of In) 45…50 °C 91 % of In) 50…55 °C 87 % of In)

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu	Halogeenivaba toode

Contractual warranty
Garantii	18 months
