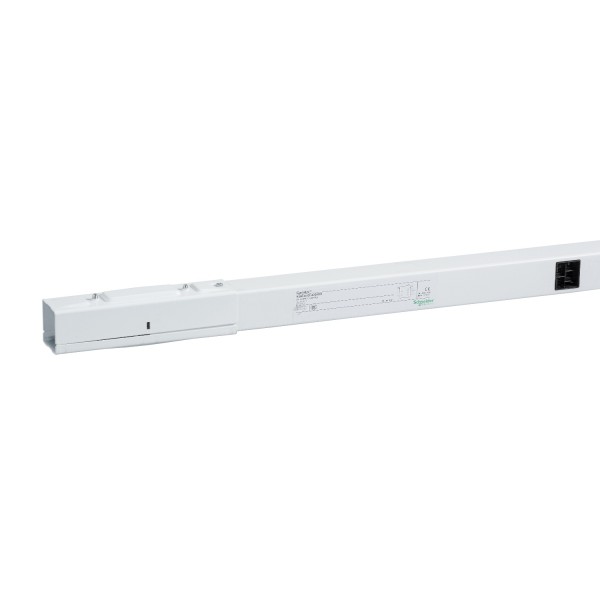

Straight length, Canalis KBB, 25 A, 2 circuits 3L+N+PE, 5 tap-off units, 3 m, white

Details

Complementary
device application	Lighting Power socket distribution
maximum radiated magnetic field	2 pT
[Ue] rated operational voltage	230...400 V
[Uimp] rated impulse withstand voltage	4 kV
[Ui] rated insulation voltage	690 V
[Ie] rated operational current	25 A 35 °C
network frequency	50/60 Hz
[Icw] rated short-time withstand current	0,44 kA
[Ipk] rated peak withstand current	4,4 kA
thermal stress limit	195 kA².s
THDI	0…15 % 25 A 15…33 % 20 A 33…100 % 16 A
maximum voltage drop	<0,72 V 1 50 Hz with 1A for 100 m long <0,67 V 0,9 50 Hz with 1A for 100 m long <0,61 V 0,8 50 Hz with 1A for 100 m long <0,55 V 0,7 50 Hz with 1A for 100 m long
mounting mode	By screws
busbar description	Straight length
busbar trunking polarity	3L + N + PE
number of circuits	2
number of tap-off outlets	5
control type	Without
standards	EN/IEC 60439-2 EN/IEC 61439-6
width	3100 mm
depth	51 mm
height	60 mm
length	3 m
colour	White RAL 9003)
net weight	4,8 kg
quantity per set	Set of 6

Environment
IP degree of protection	IP55 EN/IEC 60529
IK degree of protection	IK06 EN/IEC 62262
ambient air temperature for operation	0…35 °C 100 % of In) 35…40 °C 96 % of In) 40…45 °C 93 % of In) 45…50 °C 89 % of In) 50…55 °C 85 % of In)

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu	Halogeenivaba toode

Contractual warranty
Garantii	18 months
