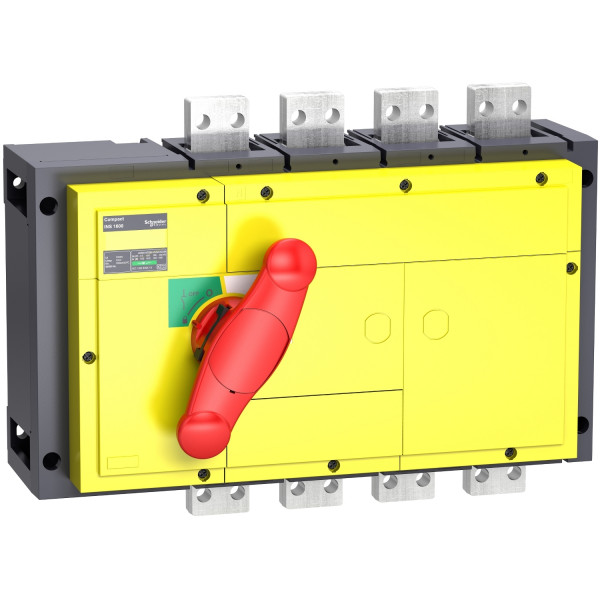

switch disconnector, Compact INS1600, 1600A, with red rotary handle and yellow front, 4 poles

Ülevaaded: 0

Tootekood: 31351

Quick Overview

Saadavus: Tellimisel

1 303,38 € (ilma KM-ta)

Details

Main
range
Compact
product name
Compact INS
product or component type
Switch disconnector
poles description
4P
network type
AC
DC
network frequency
50/60 Hz
[Ie] rated operational current
AC-21A 1250 A AC 50/60 Hz 440/480 V
AC-21A 1250 A AC 50/60 Hz 480 V NEMA
AC-21A 1250 A AC 50/60 Hz 500/525 V
AC-21A 1250 A AC 50/60 Hz 660/690 V
AC-22A 1250 A AC 50/60 Hz 440/480 V
AC-22A 1250 A AC 50/60 Hz 480 V NEMA
AC-22A 1250 A AC 50/60 Hz 500/525 V
AC-22A 1250 A AC 50/60 Hz 660/690 V
AC-23A 1250 A AC 50/60 Hz 220/240 V
AC-23A 1250 A AC 50/60 Hz 380/415 V
AC-23A 1250 A AC 50/60 Hz 440/480 V
AC-23A 1250 A AC 50/60 Hz 480 V NEMA
AC-23A 1250 A AC 50/60 Hz 500/525 V
AC-23A 1250 A AC 50/60 Hz 660/690 V
AC-21A 1450 A AC 50/60 Hz 220/240 V
AC-21A 1450 A AC 50/60 Hz 380/415 V
AC-21B 1600 A AC 50/60 Hz 220/240 V
AC-21B 1600 A AC 50/60 Hz 380/415 V
AC-21B 1600 A AC 50/60 Hz 440/480 V
AC-21B 1600 A AC 50/60 Hz 480 V NEMA
AC-21B 1600 A AC 50/60 Hz 500/525 V
AC-21B 1600 A AC 50/60 Hz 660/690 V
AC-22A 1450 A AC 50/60 Hz 220/240 V
AC-22A 1450 A AC 50/60 Hz 380/415 V
AC-22B 1600 A AC 50/60 Hz 220/240 V
AC-22B 1600 A AC 50/60 Hz 380/415 V
AC-22B 1600 A AC 50/60 Hz 440/480 V
AC-22B 1600 A AC 50/60 Hz 480 V NEMA
AC-22B 1600 A AC 50/60 Hz 500/525 V
AC-22B 1600 A AC 50/60 Hz 660/690 V
DC-21A 1600 A DC 125 V 2 poles in series
DC-22A 1600 A DC 125 V 2 poles in series
DC-23A 1600 A DC 125 V 2 poles in series
DC-21A 1600 A DC 250 V 4 poles in series
DC-22A 1600 A DC 250 V 4 poles in series
DC-23A 1600 A DC 250 V 4 poles in series
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
12 kV
[Ith] conventional free air thermal current
1600 A 60 °C
[Icm] rated short-circuit making capacity
75 kA switch-disconnector alone 690 V AC 50/60 Hz
75 kA with upstream protection circuit breaker 690 V AC 50/60 Hz
[Ue] rated operational voltage
690 V AC 50/60 Hz
250 V DC
suitability for isolation
Yes
contact position indicator
Yes
visible break
No
pollution degree
3
Complementary
control type
Rotary handle
handle colour
Red
mounting mode
Fixed
mounting support
Rail
Plate
upside connection
Front
downside connection
Front
maximum power
AC-23 400 kW 220/240 V AC 50/60 Hz
AC-23 710 kW 380/400 V AC 50/60 Hz
AC-23 800 kW 415 V AC 50/60 Hz
AC-23 900 kW 500/525 V AC 50/60 Hz
rated duty
Uninterrupted
intermittent duty class
Class 120 - 60 %
[Icw] rated short-time withstand current
10 kA 20 s IEC 60947-3
20 kA 3 s IEC 60947-3
35 kA 1 s IEC 60947-3
42 kA 0.8 s IEC 60947-3
50 kA 0.5 s IEC 60947-3
8 kA 30 s IEC 60947-3
mechanical durability
3000 cycles
electrical durability
AC-21A 500 cycles 220/240 V AC 50/60 Hz
AC-21A 500 cycles 380/415 V AC 50/60 Hz
AC-21A 500 cycles 440/480 V AC 50/60 Hz
AC-21A 500 cycles 480 V AC 50/60 Hz NEMA
AC-21A 500 cycles 500/525 V AC 50/60 Hz
AC-21A 500 cycles 660/690 V AC 50/60 Hz
AC-22A 500 cycles 220/240 V AC 50/60 Hz
AC-22A 500 cycles 380/415 V AC 50/60 Hz
AC-22A 500 cycles 440/480 V AC 50/60 Hz
AC-22A 500 cycles 480 V AC 50/60 Hz NEMA
AC-22A 500 cycles 500/525 V AC 50/60 Hz
AC-22A 500 cycles 660/690 V AC 50/60 Hz
DC-21A 500 cycles 125 V DC 2 poles in series
DC-22A 500 cycles 125 V DC 2 poles in series
DC-21A 500 cycles 250 V DC 4 poles in series
DC-22A 500 cycles 250 V DC 4 poles in series
AC-21B 100 cycles 220/240 V AC 50/60 Hz
AC-21B 100 cycles 380/415 V AC 50/60 Hz
AC-21B 100 cycles 440/480 V AC 50/60 Hz
AC-21B 100 cycles 480 V AC 50/60 Hz NEMA
AC-21B 100 cycles 500/525 V AC 50/60 Hz
AC-21B 100 cycles 660/690 V AC 50/60 Hz
AC-22B 100 cycles 220/240 V AC 50/60 Hz
AC-22B 100 cycles 380/415 V AC 50/60 Hz
AC-22B 100 cycles 440/480 V AC 50/60 Hz
AC-22B 100 cycles 480 V AC 50/60 Hz NEMA
AC-22B 100 cycles 500/525 V AC 50/60 Hz
AC-22B 100 cycles 660/690 V AC 50/60 Hz
AC-23B 500 cycles 220/240 V AC 50/60 Hz
AC-23B 500 cycles 380/415 V AC 50/60 Hz
AC-23B 500 cycles 440/480 V AC 50/60 Hz
AC-23B 500 cycles 480 V AC 50/60 Hz NEMA
AC-23B 500 cycles 500/525 V AC 50/60 Hz
AC-23B 500 cycles 660/690 V AC 50/60 Hz
DC-23B 500 cycles 125 V DC 2 poles in series
DC-23B 500 cycles 250 V DC 4 poles in series
connection pitch
70 mm
height
300 mm
width
410 mm
depth
146,5 mm
net weight
18 kg
Environment
standards
IEC 60947-3
IEC 60947-1
product certifications
KEMA-KEUR
IP degree of protection
IP40 IEC 60529
IK degree of protection
IK07 EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
