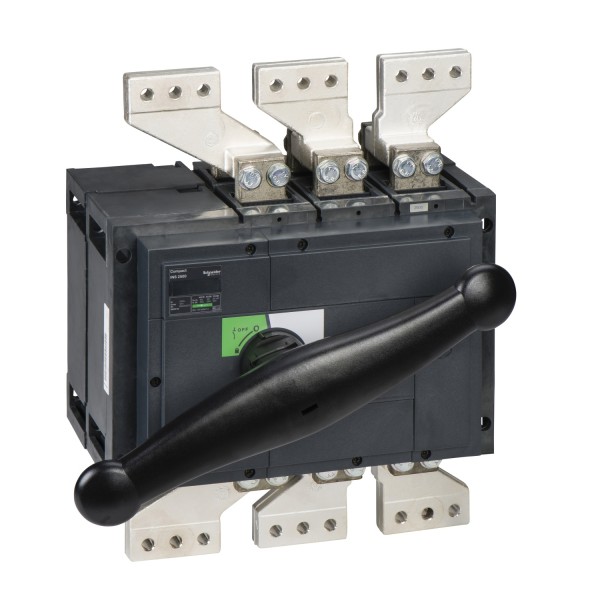

switch disconnector, Compact INS2500 , 2500 A, standard version with black rotary handle, 3 poles

Ülevaaded: 0

Tootekood: 31340

Quick Overview

Saadavus: Tellimisel

1 735,15 € (ilma KM-ta)

Details

Main
range
Compact
product name
Compact INS
product or component type
Switch disconnector
poles description
3P
network type
AC
DC
network frequency
50/60 Hz
[Ie] rated operational current
AC-21B 2500 A AC 50/60 Hz 220/240 V
AC-21B 2500 A AC 50/60 Hz 380/415 V
AC-21B 2500 A AC 50/60 Hz 440/480 V
AC-21B 2500 A AC 50/60 Hz 480 V NEMA
AC-21B 2500 A AC 50/60 Hz 500/525 V
AC-21B 2500 A AC 50/60 Hz 660/690 V
AC-22B 2500 A AC 50/60 Hz 220/240 V
AC-22B 2500 A AC 50/60 Hz 380/415 V
AC-22B 2500 A AC 50/60 Hz 440/480 V
AC-22B 2500 A AC 50/60 Hz 480 V NEMA
AC-22B 2500 A AC 50/60 Hz 500/525 V
AC-22B 2500 A AC 50/60 Hz 660/690 V
DC-21B 2500 A DC 125 V 2 poles in series
DC-22B 2500 A DC 125 V 2 poles in series
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
12 kV
[Ith] conventional free air thermal current
2500 A 60 °C
[Icm] rated short-circuit making capacity
105 kA switch-disconnector alone 690 V AC 50/60 Hz
105 kA with upstream protection circuit breaker 690 V AC 50/60 Hz
[Ue] rated operational voltage
125 V DC
690 V AC 50/60 Hz
suitability for isolation
Yes
contact position indicator
Yes
visible break
No
pollution degree
3
Complementary
control type
Direct front rotary handle
handle colour
Black
mounting mode
Fixed
mounting support
Plate
Rail
upside connection
Front
downside connection
Front
rated duty
Uninterrupted
intermittent duty class
Class 120 - 60 %
[Icw] rated short-time withstand current
50 kA 0.5 s IEC 60947-3
11 kA 30 s IEC 60947-3
13 kA 20 s IEC 60947-3
30 kA 3 s IEC 60947-3
50 kA 0.8 s IEC 60947-3
50 kA 1 s IEC 60947-3
mechanical durability
3000 cycles
electrical durability
AC-21B 100 cycles 220/240 V AC 50/60 Hz
AC-21B 100 cycles 380/415 V AC 50/60 Hz
AC-21B 100 cycles 440/480 V AC 50/60 Hz
AC-21B 100 cycles 480 V AC 50/60 Hz NEMA
AC-21B 100 cycles 500/525 V AC 50/60 Hz
AC-21B 100 cycles 660/690 V AC 50/60 Hz
AC-22B 100 cycles 220/240 V AC 50/60 Hz
AC-22B 100 cycles 380/415 V AC 50/60 Hz
AC-22B 100 cycles 440/480 V AC 50/60 Hz
AC-22B 100 cycles 480 V AC 50/60 Hz NEMA
AC-22B 100 cycles 500/525 V AC 50/60 Hz
AC-22B 100 cycles 660/690 V AC 50/60 Hz
DC-21B 100 cycles 125 V DC 2 poles in series
DC-22B 100 cycles 125 V DC 2 poles in series
connection pitch
70 mm
height
440 mm
width
347,5 mm
depth
227,5 mm
net weight
35 kg
Environment
standards
IEC 60947-1
IEC 60947-3
product certifications
KEMA-KEUR
IP degree of protection
IP40 IEC 60529
IK degree of protection
IK07 EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
