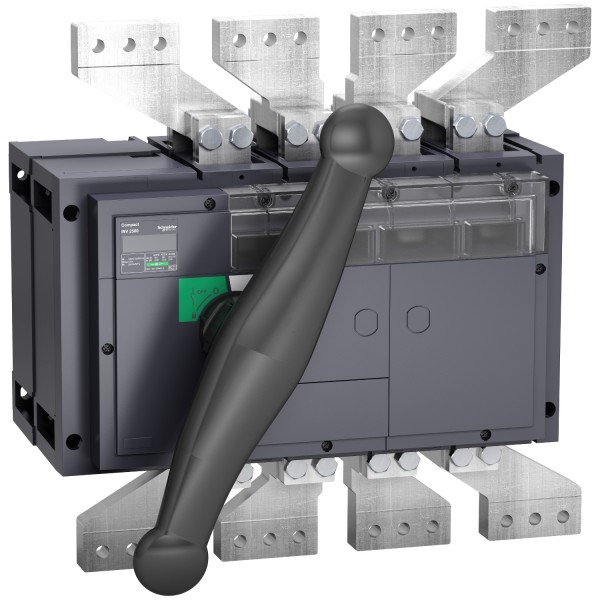

switch disconnector, Compact INV2500, visible break, 2500 A, standard version with black rotary handle, 4 poles

Product was successfully added to your shopping cart.

switch disconnector, Compact INV2500, visible break, 2500 A, standard version with black rotary handle, 4 poles

Tootekood: 31369

Quick Overview

Saadavus: Tellimisel

1 887,41 € (ilma KM-ta)

Qty:

Details

Main
range	Compact
product name	Compact INS
product or component type	Switch disconnector
poles description	4P
network type	AC DC
network frequency	50/60 Hz
[Ie] rated operational current	AC-21B 2500 A AC 50/60 Hz 220/240 V AC-21B 2500 A AC 50/60 Hz 380/415 V AC-21B 2500 A AC 50/60 Hz 440/480 V AC-21B 2500 A AC 50/60 Hz 480 V NEMA AC-21B 2500 A AC 50/60 Hz 500/525 V AC-21B 2500 A AC 50/60 Hz 660/690 V AC-22B 2500 A AC 50/60 Hz 220/240 V AC-22B 2500 A AC 50/60 Hz 380/415 V AC-22B 2500 A AC 50/60 Hz 440/480 V AC-22B 2500 A AC 50/60 Hz 480 V NEMA AC-22B 2500 A AC 50/60 Hz 500/525 V AC-22B 2500 A AC 50/60 Hz 660/690 V DC-21B 2500 A DC 125 V 2 poles in series DC-22B 2500 A DC 125 V 2 poles in series DC-21B 2500 A DC 250 V 4 poles in series DC-22B 2500 A DC 250 V 4 poles in series
[Ui] rated insulation voltage	1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	12 kV
[Ith] conventional free air thermal current	2500 A 60 °C
[Icm] rated short-circuit making capacity	105 kA switch-disconnector alone 690 V AC 50/60 Hz 105 kA with upstream protection circuit breaker 690 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz 250 V DC
suitability for isolation	Yes
contact position indicator	Yes
visible break	Yes
pollution degree	3

Complementary
control type	Direct front rotary handle
handle colour	Black
mounting mode	Fixed
mounting support	Rail Plate
upside connection	Front
downside connection	Front
rated duty	Uninterrupted
intermittent duty class	Class 120 - 60 %
[Icw] rated short-time withstand current	50 kA 0.5 s IEC 60947-3 11 kA 30 s IEC 60947-3 13 kA 20 s IEC 60947-3 30 kA 3 s IEC 60947-3 50 kA 0.8 s IEC 60947-3 50 kA 1 s IEC 60947-3
mechanical durability	3000 cycles
electrical durability	AC-21B 100 cycles 220/240 V AC 50/60 Hz AC-21B 100 cycles 380/415 V AC 50/60 Hz AC-21B 100 cycles 440/480 V AC 50/60 Hz AC-21B 100 cycles 480 V AC 50/60 Hz NEMA AC-21B 100 cycles 500/525 V AC 50/60 Hz AC-21B 100 cycles 660/690 V AC 50/60 Hz AC-22B 100 cycles 220/240 V AC 50/60 Hz AC-22B 100 cycles 380/415 V AC 50/60 Hz AC-22B 100 cycles 440/480 V AC 50/60 Hz AC-22B 100 cycles 480 V AC 50/60 Hz NEMA AC-22B 100 cycles 500/525 V AC 50/60 Hz AC-22B 100 cycles 660/690 V AC 50/60 Hz DC-21B 100 cycles 125 V DC 2 poles in series DC-22B 100 cycles 125 V DC 2 poles in series DC-21B 100 cycles 250 V DC 4 poles in series DC-22B 100 cycles 250 V DC 4 poles in series
connection pitch	70 mm
height	440 mm
width	347,5 mm
depth	227,5 mm
net weight	45 kg

Environment
standards	IEC 60947-3 IEC 60947-1
product certifications	KEMA-KEUR
IP degree of protection	IP40 IEC 60529
IK degree of protection	IK07 EN 50102
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
