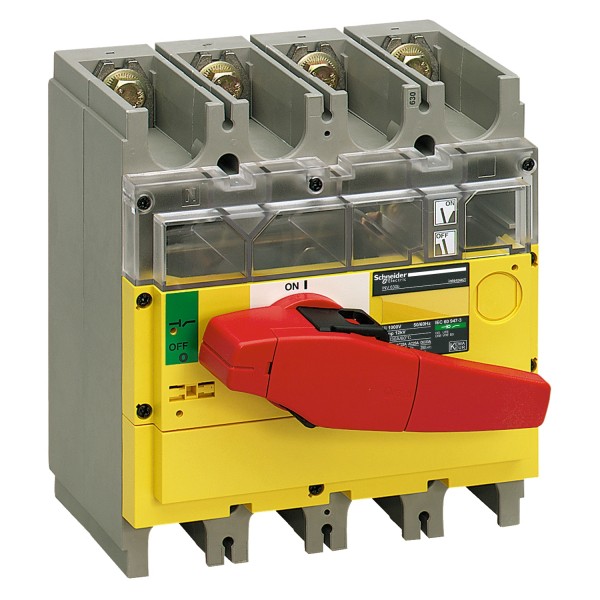

switch disconnector, Compact INV630, visible break, 630 A, with red rotary handle and yellow front, 4 poles

Compact

Compact INV

Switch disconnector

4P

DC
AC

50/60 Hz

Red

AC-23A 500 A AC 50/60 Hz 500/525 V
AC-23A 500 A AC 50/60 Hz 660/690 V
AC-21A 630 A AC 50/60 Hz 220/240 V
AC-21A 630 A AC 50/60 Hz 380/415 V
AC-21A 630 A AC 50/60 Hz 440/480 V
AC-21A 630 A AC 50/60 Hz 480 V NEMA
AC-21A 630 A AC 50/60 Hz 500/525 V
AC-21A 630 A AC 50/60 Hz 660/690 V
AC-22A 550 A AC 50/60 Hz 660/690 V
AC-22A 630 A AC 50/60 Hz 220/240 V
AC-22A 630 A AC 50/60 Hz 380/415 V
AC-22A 630 A AC 50/60 Hz 440/480 V
AC-22A 630 A AC 50/60 Hz 480 V NEMA
AC-22A 630 A AC 50/60 Hz 500/525 V
AC-23A 630 A AC 50/60 Hz 220/240 V
AC-23A 630 A AC 50/60 Hz 380/415 V
AC-23A 630 A AC 50/60 Hz 440/480 V
AC-23A 630 A AC 50/60 Hz 480 V NEMA
AC-23B 630 A AC 50/60 Hz 220/240 V
AC-23B 630 A AC 50/60 Hz 380/415 V
AC-23B 630 A AC 50/60 Hz 440/480 V
AC-23B 630 A AC 50/60 Hz 480 V NEMA
AC-23B 630 A AC 50/60 Hz 500/525 V
AC-23B 630 A AC 50/60 Hz 660/690 V
DC-21A 550 A DC 125 V 2 poles in series
DC-22A 550 A DC 125 V 2 poles in series
DC-23A 550 A DC 125 V 2 poles in series
DC-23B 630 A DC 125 V 2 poles in series
DC-21A 550 A DC 250 V 4 poles in series
DC-22A 550 A DC 250 V 4 poles in series
DC-23A 550 A DC 250 V 4 poles in series
DC-23B 630 A DC 250 V 4 poles in series

750 V AC 50/60 Hz

8 kV

630 A 60 °C

330 kA with upstream protection circuit breaker 690 V AC 50/60 Hz
50 kA switch-disconnector alone 690 V AC 50/60 Hz

690 V AC 50/60 Hz
250 V DC

Yes

Yes

Yes

3

Rotary handle

Fixed

Plate
Rail

Front

Front

AC-23 200 kW 220/240 V AC 50/60 Hz
AC-23 315 kW 380/415 V AC 50/60 Hz
AC-23 400 kW 500/525 V AC 50/60 Hz
AC-23 200 kW 230 V AC 50/60 Hz
AC-23 375 kW 480 V AC 50/60 Hz
AC-23 400 kW 440 V AC 50/60 Hz NEMA)
AC-23 560 kW 660/690 V AC 50/60 Hz NEMA)

Uninterrupted

11,5 kA 3 s IEC 60947-3
20 kA 1 s IEC 60947-3
4 kA 30 s IEC 60947-3
4,9 kA 20 s IEC 60947-3

10000 cycles

AC-21A 1000 cycles 440 V AC 50/60 Hz
AC-21A 1000 cycles 500 V AC 50/60 Hz
AC-21A 1000 cycles 690 V AC 50/60 Hz
AC-22A 1000 cycles 440 V AC 50/60 Hz
AC-22A 1000 cycles 500 V AC 50/60 Hz
AC-22A 1000 cycles 690 V AC 50/60 Hz
AC-23A 1000 cycles 440 V AC 50/60 Hz
AC-23A 1000 cycles 500 V AC 50/60 Hz
AC-23A 1000 cycles 690 V AC 50/60 Hz
DC-21A 1000 cycles 250 V DC
DC-22A 1000 cycles 250 V DC
DC-23A 1000 cycles 250 V DC
AC-23B 200 cycles 500 V AC 50/60 Hz
AC-23B 200 cycles 690 V AC 50/60 Hz
DC-23B 200 cycles 250 V DC

45 mm

205 mm

185 mm

130 mm

4,9 kg

IEC 60947-3
IEC 60947-1

KEMA-KEUR
CCC

IP40 IEC 60529

IK07 EN 50102

-25…70 °C

-50…85 °C

Green Premium toode

Vastavus
ELi RoHS deklaratsioon

Jah

Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.

Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

18 months
