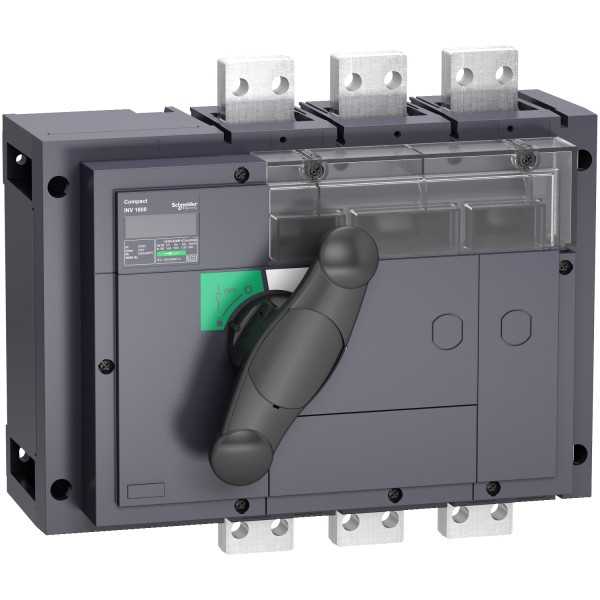

switch disconnector, Compact INV800, visible break, 800 A, standard version with black rotary handle, 3 poles

Product was successfully added to your shopping cart.

switch disconnector, Compact INV800, visible break, 800 A, standard version with black rotary handle, 3 poles

Tootekood: 31358

Quick Overview

Saadavus: Tellimisel

1 084,39 € (ilma KM-ta)

Qty:

Details

Main
range	Compact
product name	Compact INS
product or component type	Switch disconnector
poles description	3P
network type	DC AC
network frequency	50/60 Hz
[Ie] rated operational current	AC-21A 800 A AC 50/60 Hz 220/240 V AC-21A 800 A AC 50/60 Hz 380/415 V AC-21A 800 A AC 50/60 Hz 440/480 V AC-21A 800 A AC 50/60 Hz 480 V NEMA AC-21A 800 A AC 50/60 Hz 500/525 V AC-21A 800 A AC 50/60 Hz 660/690 V AC-22A 800 A AC 50/60 Hz 220/240 V AC-22A 800 A AC 50/60 Hz 380/415 V AC-22A 800 A AC 50/60 Hz 440/480 V AC-22A 800 A AC 50/60 Hz 480 V NEMA AC-22A 800 A AC 50/60 Hz 500/525 V AC-22A 800 A AC 50/60 Hz 660/690 V AC-23A 800 A AC 50/60 Hz 220/240 V AC-23A 800 A AC 50/60 Hz 380/415 V AC-23A 800 A AC 50/60 Hz 440/480 V AC-23A 800 A AC 50/60 Hz 480 V NEMA AC-23A 800 A AC 50/60 Hz 500/525 V AC-23A 800 A AC 50/60 Hz 660/690 V DC-21A 800 A DC 125 V 2 poles in series DC-22A 800 A DC 125 V 2 poles in series DC-23B 800 A DC 125 V 2 poles in series
[Ui] rated insulation voltage	1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	12 kV
[Ith] conventional free air thermal current	800 A 60 °C
[Icm] rated short-circuit making capacity	330 kA with upstream protection circuit breaker 690 V AC 50/60 Hz 75 kA switch-disconnector alone 690 V AC 50/60 Hz
[Ue] rated operational voltage	125 V DC 690 V AC 50/60 Hz
suitability for isolation	Yes
contact position indicator	Yes
visible break	Yes
pollution degree	3

Complementary
control type	Direct front rotary handle
handle colour	Black
mounting mode	Fixed
mounting support	Plate Rail
upside connection	Front
downside connection	Front
maximum power	AC-23 250 kW 220/240 V AC 50/60 Hz AC-23 400 kW 380/400 V AC 50/60 Hz AC-23 500 kW 415 V AC 50/60 Hz AC-23 560 kW 500/525 V AC 50/60 Hz AC-23 710 kW 660/690 V AC 50/60 Hz
rated duty	Uninterrupted
intermittent duty class	Class 120 - 60 %
[Icw] rated short-time withstand current	10 kA 20 s IEC 60947-3 20 kA 3 s IEC 60947-3 35 kA 1 s IEC 60947-3 42 kA 0.8 s IEC 60947-3 50 kA 0.5 s IEC 60947-3 8 kA 30 s IEC 60947-3
mechanical durability	3000 cycles
electrical durability	AC-21A 500 cycles 220/240 V AC 50/60 Hz AC-21A 500 cycles 380/415 V AC 50/60 Hz AC-21A 500 cycles 440/480 V AC 50/60 Hz AC-21A 500 cycles 500/525 V AC 50/60 Hz AC-21A 500 cycles 660/690 V AC 50/60 Hz AC-22A 500 cycles 220/240 V AC 50/60 Hz AC-22A 500 cycles 380/415 V AC 50/60 Hz AC-22A 500 cycles 440/480 V AC 50/60 Hz AC-22A 500 cycles 500/525 V AC 50/60 Hz AC-22A 500 cycles 660/690 V AC 50/60 Hz AC-23A 500 cycles 220/240 V AC 50/60 Hz AC-23A 500 cycles 380/415 V AC 50/60 Hz AC-23A 500 cycles 440/480 V AC 50/60 Hz AC-23A 500 cycles 500/525 V AC 50/60 Hz AC-23A 500 cycles 660/690 V AC 50/60 Hz DC-21A 500 cycles 125 V DC 2 poles in series DC-22A 500 cycles 125 V DC 2 poles in series DC-23A 500 cycles 125 V DC 2 poles in series
connection pitch	70 mm
height	300 mm
width	340 mm
depth	146,5 mm
net weight	14 kg

Environment
standards	IEC 60947-3 IEC 60947-1
product certifications	KEMA-KEUR
IP degree of protection	IP40 IEC 60529
IK degree of protection	IK07 EN 50102
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
