  • switch disconnector Compact NSX100NA, 4 poles, 100 A, AC22A, AC23A

Product was successfully added to your shopping cart.

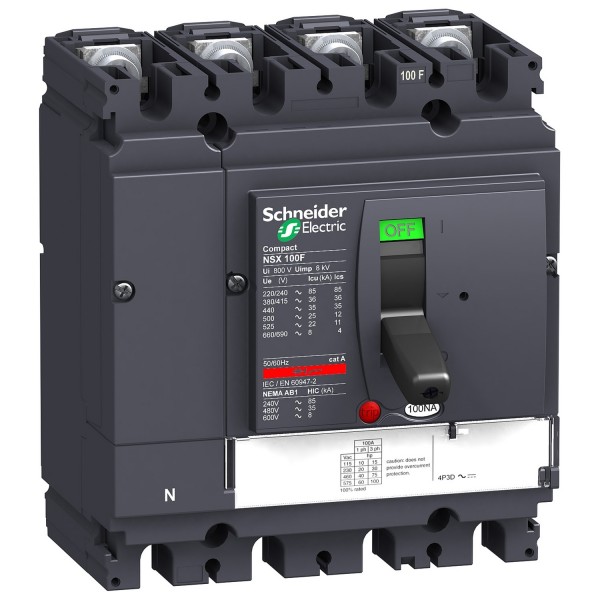

switch disconnector Compact NSX100NA, 4 poles, 100 A, AC22A, AC23A

Ülevaaded: 0

Tootekood: LV429639

Quick Overview

Saadavus: Tellimisel

165,74 € (ilma KM-ta)

Details

Main
range
Compact
product name
Compact NSX
product or component type
Switch disconnector
device short name
Compact NSX100NA
poles description
4P
network type
AC
DC
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-3
750 V DC 3 poles in series IEC 60947-3
500 V DC 2 poles in series IEC 60947-3
250 V DC 1 pole IEC 60947-3
[Ie] rated operational current
AC-22A 100 A AC 50/60 Hz 220...690 V
AC-23A 100 A AC 50/60 Hz 220...690 V
DC-22A 100 A DC 250 V 1 pole
DC-22A 100 A DC 500 V 2 poles in series
DC-23A 100 A DC 250 V 1 pole
DC-23A 100 A DC 500 V 2 poles in series
[Ui] rated insulation voltage
800 V AC 50/60 Hz IEC 60947-3
[Uimp] rated impulse withstand voltage
8 kVIEC 60947-3
[Ith] conventional free air thermal current
100 A 60 °C
[Icm] rated short-circuit making capacity
330 kA with upstream protection circuit breaker
2,6 kA switch-disconnector alone
breaking capacity code
NA
suitability for isolation
Yes EN 60947-3
Yes IEC 60947-3
contact position indicator
Yes
visible break
No
pollution degree
3 IEC 60664-1
Complementary
control type
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
[Icw] rated short-time withstand current
0,69 kA 20 s IEC 60947-3
1,8 kA 1 s IEC 60947-3
1,8 kA 3 s IEC 60947-3
mechanical durability
50000 cycles IEC 60947-3
electrical durability
AC-22A 10000 cycles 250 V DC In/2 (1 pole) IEC 60947-3
AC-22A 15000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-3
AC-22A 20000 cycles 440 V AC 50/60 Hz In IEC 60947-3
AC-22A 35000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-3
AC-22A 5000 cycles 500 V DC In (2 poles in series) IEC 60947-3
AC-22A 8000 cycles 690 V AC 50/60 Hz In IEC 60947-3
AC-23A 10000 cycles 250 V DC In/2 (1 pole) IEC 60947-3
AC-23A 15000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-3
AC-23A 20000 cycles 440 V AC 50/60 Hz In IEC 60947-3
AC-23A 35000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-3
AC-23A 5000 cycles 500 V DC In (2 poles in series) IEC 60947-3
AC-23A 8000 cycles 690 V AC 50/60 Hz In IEC 60947-3
connection pitch
35 mm
height
161 mm
width
140 mm
depth
86 mm
net weight
2,2 kg
Environment
standards
EN/IEC 60947
UL 508
product certifications
EAC
CCC
IP degree of protection
IP40 IEC 60529
IK degree of protection
IK07 IEC 62262
electrical shock protection class
Class II
ambient air temperature for operation
-35…70 °C
ambient air temperature for storage
-55…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
