  • Switch-disconnector fuse body INFB 3 poles 3F - BS - 160 A- front handle

Product was successfully added to your shopping cart.

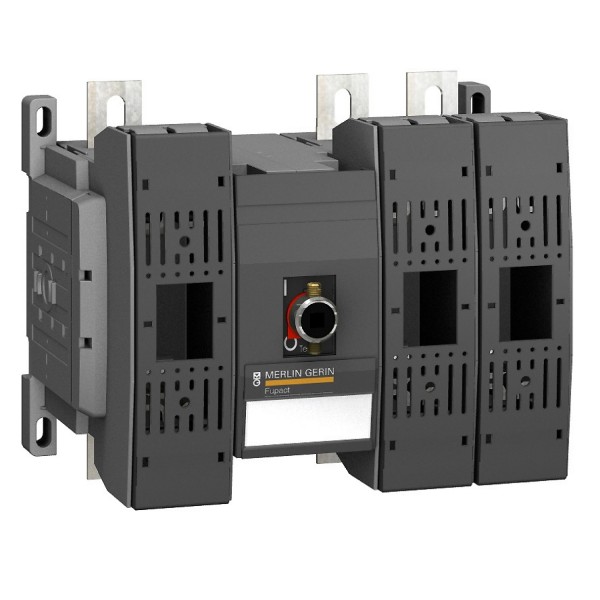

Switch-disconnector fuse body INFB 3 poles 3F - BS - 160 A- front handle

Ülevaaded: 0

Tootekood: 49585

Quick Overview

Saadavus: Ei saa enam tellida

683,04 € (ilma KM-ta)

Details

Main
range of product
INF100...160
range
FuPact
product name
Fupact INF
device short name
INFB160
product or component type
Switch-disconnector-fuse
device application
Protection
poles description
3P
protected poles description
3f
fuse type
BS
fuse size
A2
A4
A3
network type
DC
AC
network frequency
50/60 Hz
Complementary
control type
Without handle
rotary handle mounting location
Front
rotary handle mounting style
Extended
Direct
mounting support
DIN rail, with specific accessories
Mounting plate
[Ie] rated operational current
AC-22A: 160 A AC 50/60 Hz 220/240 V
AC-22A: 160 A AC 50/60 Hz 380/415 V
AC-22A: 160 A AC 50/60 Hz 440/480 V
AC-22A: 160 A AC 50/60 Hz 500/525 V
AC-22A: 160 A AC 50/60 Hz 660/690 V
AC-23A: 160 A AC 50/60 Hz 220/240 V
AC-23A: 160 A AC 50/60 Hz 380/415 V
AC-23A: 160 A AC 50/60 Hz 440/480 V
AC-23A: 160 A AC 50/60 Hz 500/525 V
AC-23B: 160 A AC 50/60 Hz 660/690 V
DC-22A: 100 A DC 500 V 4 poles in series
DC-22A: 160 A DC 125 V 2 poles in series
DC-22A: 160 A DC 250 V 2 poles in series
DC-23A: 100 A DC 500 V 4 poles in series
DC-23A: 160 A DC 125 V 2 poles in series
DC-23A: 160 A DC 250 V 2 poles in series
[Ith] conventional free air thermal current
103 A ( 70 °C ) horizontal
111 A ( 65 °C ) horizontal
112 A ( 70 °C ) vertical
118 A ( 60 °C ) horizontal
120 A ( 65 °C ) vertical
126 A ( 55 °C ) horizontal
128 A ( 60 °C ) vertical
133 A ( 50 °C ) horizontal
136 A ( 55 °C ) vertical
140 A ( 45 °C ) horizontal
144 A ( 50 °C ) vertical
148 A ( 40 °C ) horizontal
152 A ( 45 °C ) vertical
156 A ( 35 °C ) horizontal
160 A ( 40 °C ) power dissipation per fuse: 12 W
160 A ( 40 °C ) vertical
[Ithe] conventional enclosed thermal current
135 A at 40 °C, Power dissipation per fuse: 12 W (300 mm x 350 mm x 200 mm)
160 A at 40 °C, Power dissipation per fuse: 10 W (300 mm x 350 mm x 200 mm)
maximum power
110 kW at 500/525 V AC 50/60 Hz
132 kW at 660/690 V AC 50/60 Hz
45 kW at 220/240 V AC 50/60 Hz
80 kW at 380/400 V AC 50/60 Hz
90 kW at 415 V AC 50/60 Hz
rated duty
Uninterrupted
intermittent duty class
Class 120 - 60 %
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
1000 V DC
[Uimp] rated impulse withstand voltage
12 kV
[Ue] rated operational voltage
690 V AC 50/60 Hz
690 V AC 50/60 Hz AC-20
690 V DC DC-20
500 V DC
[Im] rated making and breaking capacity
Icm 105 kA at 690 V conforming to DIN (with fuse)
Icm 176 kA at 415 V conforming to BS (with fuse)
Icm 220 kA at 500 V conforming to DIN (with fuse)
Icn 100 kA at 500 V conforming to DIN (with fuse)
Icn 50 kA at 690 V conforming to DIN (with fuse)
Icn 80 kA at 415 V conforming to BS (with fuse)
Icm 15 kA at 690 V (without fuse)
Icm 22 kA at 415 V (without fuse)
Icm 22 kA at 500 V (without fuse)
suitability for isolation
Yes
contact position indicator
Yes
contact operation
Double-break
Environment
mechanical durability
10000 cycles
electrical durability
AC-22A: 1500 cycles 500 V AC 50/60 Hz
AC-22A: 1500 cycles 690 V AC 50/60 Hz
AC-23A: 1500 cycles 500 V AC 50/60 Hz
AC-23A: 1500 cycles 690 V AC 50/60 Hz
[Icw] rated short-time withstand current
5 kA for 1 s
0.95 kA for 30 s
1.15 kA for 20 s
2.9 kA for 3 s
design
Horizontal design
tightening torque
15...22 N.m for terminal
height
140 mm
width
180 mm
depth
130 mm
standards
EN/IEC 60947-5
EN/IEC 60947-3
EN/IEC 60269-1
EN/IEC 60269-4
EN/IEC 60947-1
product certifications
KEMA-KEUR
IP degree of protection
IP20 conforming to IEC 60529
IP65 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
IK10 conforming to EN 50102
pollution degree
3
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Contractual warranty
Warranty
18 months
