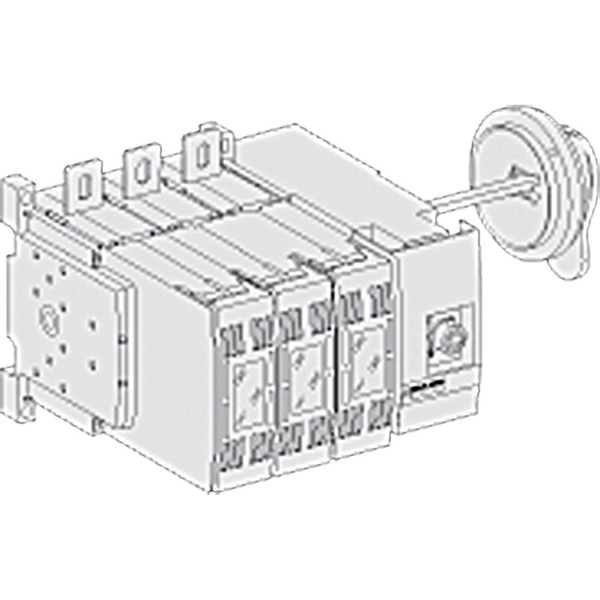

Switch-disconnector fuse body INFC 4 poles 4F - NFC - 125 A- lateral handle

Product was successfully added to your shopping cart.

Switch-disconnector fuse body INFC 4 poles 4F - NFC - 125 A- lateral handle

Tootekood: 49529

Quick Overview

Saadavus: Ei saa enam tellida

479,53 € (ilma KM-ta)

Details

Main
range of product	INF100...160
range	FuPact
product name	Fupact INF
device short name	INFC125
product or component type	Switch-disconnector-fuse
device application	Protection
poles description	4P
protected poles description	4f
fuse type	NFC
fuse size	22 x 58 mm
network type	AC DC
network frequency	50/60 Hz

Complementary
control type	Without handle
rotary handle mounting location	Lateral
rotary handle mounting style	Extended
mounting support	DIN rail, with specific accessories Mounting plate
[Ie] rated operational current	AC-22A 125 A AC 50/60 Hz 220/240 V AC-22A 125 A AC 50/60 Hz 380/415 V AC-22A 125 A AC 50/60 Hz 440/480 V AC-22A 125 A AC 50/60 Hz 500/525 V AC-22A 125 A AC 50/60 Hz 660/690 V AC-23A 125 A AC 50/60 Hz 220/240 V AC-23A 125 A AC 50/60 Hz 380/415 V AC-23A 125 A AC 50/60 Hz 440/480 V AC-23A 125 A AC 50/60 Hz 500/525 V AC-23B 125 A AC 50/60 Hz 660/690 V DC-22A 125 A DC 125 V 2 poles in series DC-22A 125 A DC 250 V 2 poles in series DC-22A 125 A DC 500 V 4 poles in series DC-23A 125 A DC 125 V 2 poles in series DC-23A 125 A DC 250 V 2 poles in series DC-23A 125 A DC 500 V 4 poles in series
[Ith] conventional free air thermal current	100 A 60 °C ) vertical 103 A 50 °C ) horizontal 106 A 55 °C ) vertical 109 A 45 °C ) horizontal 113 A 50 °C ) vertical 115 A 40 °C ) horizontal 119 A 45 °C ) vertical 121 A 35 °C ) horizontal 125 A 40 °C ) 12 W 125 A 40 °C ) vertical 81 A 70 °C ) horizontal 86 A 65 °C ) horizontal 88 A 70 °C ) vertical 92 A 60 °C ) horizontal 94 A 65 °C ) vertical 97 A 55 °C ) horizontal
[Ithe] conventional enclosed thermal current	125 A 40 °C 12 W 300 mm x 350 mm x 200 mm)
maximum power	110 kW 660/690 V AC 50/60 Hz 37 kW 220/240 V AC 50/60 Hz 60 kW 380/400 V AC 50/60 Hz 60 kW 415 V AC 50/60 Hz 80 kW 500/525 V AC 50/60 Hz
rated duty	Uninterrupted
intermittent duty class	Class 120 - 60 %
[Ui] rated insulation voltage	1000 V AC 50/60 Hz 1000 V DC
[Uimp] rated impulse withstand voltage	12 kV
[Ue] rated operational voltage	690 V AC 50/60 Hz 690 V AC 50/60 Hz AC-20 690 V DC DC-20 500 V DC
[Im] rated making and breaking capacity	Icm 105 kA 690 V DIN with fuse) Icm 176 kA 415 V BS with fuse) Icm 220 kA 500 V DIN with fuse) Icn 100 kA 500 V DIN with fuse) Icn 50 kA 690 V DIN with fuse) Icn 80 kA 415 V BS with fuse) Icm 15 kA 690 V without fuse) Icm 22 kA 415 V without fuse) Icm 22 kA 500 V without fuse)
suitability for isolation	Yes
contact position indicator	Yes
contact operation	Double-break

Environment
mechanical durability	10000 cycles
electrical durability	AC-22A 1500 cycles 500 V AC 50/60 Hz AC-22A 1500 cycles 690 V AC 50/60 Hz AC-23A 1500 cycles 500 V AC 50/60 Hz AC-23A 1500 cycles 690 V AC 50/60 Hz
[Icw] rated short-time withstand current	5 kA 1 s 0,95 kA 30 s 1,15 kA 20 s 2,9 kA 3 s
design	Horizontal design
tightening torque	15...22 N.m terminal
height	140 mm
width	215 mm
depth	130 mm
standards	EN/IEC 60947-1 EN/IEC 60947-5 EN/IEC 60269-1 EN/IEC 60947-3 EN/IEC 60269-4
product certifications	KEMA-KEUR
IP degree of protection	IP20 IEC 60529 IP65 IEC 60529
IK degree of protection	IK07 EN 50102 IK10 EN 50102
pollution degree	3
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Contractual warranty
Garantii	18 months
