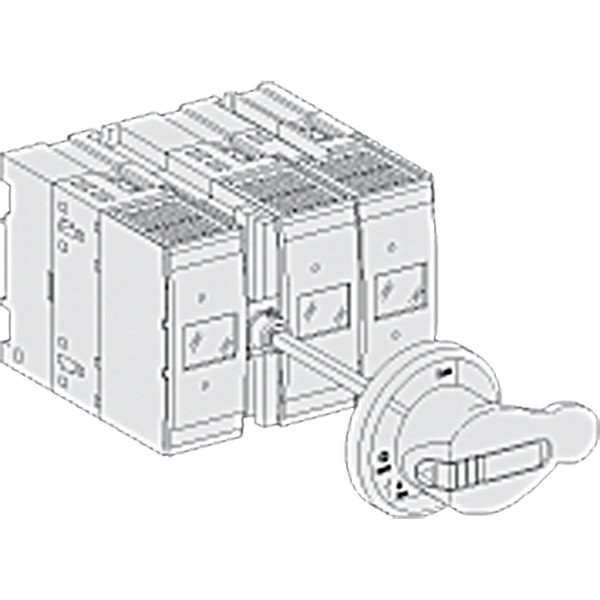

Switch-disconnector fuse body INFC 4 poles 4F - NFC - 63 A- front handle

Ülevaaded: 0

Tootekood: 49520

Quick Overview

Saadavus: Ei saa enam tellida

400,33 € (ilma KM-ta)

Details

Main
range of product
INF63
range
FuPact
product name
Fupact INF
device short name
INFC63
product or component type
Switch-disconnector-fuse
device application
Protection
poles description
4P
protected poles description
4f
fuse type
NFC
fuse size
22 x 58 mm
network type
DC
AC
network frequency
50/60 Hz
Complementary
control type
Without handle
rotary handle mounting location
Front
rotary handle mounting style
Extended
Direct
mounting support
DIN rail, with specific accessories
Mounting plate
[Ie] rated operational current
AC-22A 63 A AC 50/60 Hz 220/240 V
AC-22A 63 A AC 50/60 Hz 380/415 V
AC-22A 63 A AC 50/60 Hz 440/480 V
AC-22A 63 A AC 50/60 Hz 500/525 V
AC-22A 63 A AC 50/60 Hz 660/690 V
AC-23A 63 A AC 50/60 Hz 220/240 V
AC-23A 63 A AC 50/60 Hz 380/415 V
AC-23A 63 A AC 50/60 Hz 440/480 V
AC-23A 63 A AC 50/60 Hz 500/525 V
AC-23B 63 A AC 50/60 Hz 660/690 V
DC-22A 63 A DC 125 V 3 poles in series
DC-22A 63 A DC 250 V 3 poles in series
DC-23A 63 A DC 125 V 3 poles in series
DC-23A 63 A DC 250 V 3 poles in series
[Ith] conventional free air thermal current
40 A 70 °C ) horizontal
43 A 65 °C ) horizontal
44 A 70 °C ) vertical
46,4 A 60 °C ) horizontal
47,2 A 65 °C ) vertical
49,3 A 55 °C ) horizontal
50,4 A 60 °C ) vertical
52,2 A 50 °C ) horizontal
53,6 A 55 °C ) vertical
55 A 45 °C ) horizontal
56,7 A 50 °C ) vertical
58 A 40 °C ) horizontal
60 A 45 °C ) vertical
61 A 35 °C ) horizontal
63 A 40 °C ) 7,5 W
63 A ( 40 °C ) vertical
[Ithe] conventional enclosed thermal current
63 A 40 °C 7,5 W 300 mm x 350 mm x 200 mm)
maximum power
30 kW 380/400 V AC 50/60 Hz
30 kW 415 V AC 50/60 Hz
37 kW 500/525 V AC 50/60 Hz
60 kW 660/690 V AC 50/60 Hz
18,5 kW 220/240 V AC 50/60 Hz
rated duty
Uninterrupted
intermittent duty class
Class 120 - 60 %
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
1000 V DC
[Uimp] rated impulse withstand voltage
12 kV
[Ue] rated operational voltage
250 V DC
690 V AC 50/60 Hz
690 V AC 50/60 Hz AC-20
690 V DC DC-20
[Im] rated making and breaking capacity
Icm 105 kA 690 V DIN with fuse)
Icm 13 kA 690 V without fuse)
Icm 17 kA 415 V without fuse)
Icm 17 kA 500 V without fuse)
Icm 176 kA 415 V BS with fuse)
Icm 220 kA 500 V DIN with fuse)
Icn 100 kA 500 V DIN with fuse)
Icn 50 kA 690 V DIN with fuse)
Icn 80 kA 415 V BS with fuse)
suitability for isolation
Yes
contact position indicator
Yes
contact operation
Double-break
Environment
mechanical durability
10000 cycles
electrical durability
AC-22A 1500 cycles 500 V AC 50/60 Hz
AC-22A 1500 cycles 690 V AC 50/60 Hz
AC-23A 1500 cycles 500 V AC 50/60 Hz
AC-23A 1500 cycles 690 V AC 50/60 Hz
[Icw] rated short-time withstand current
0,46 kA 30 s
0,56 kA 20 s
1,44 kA 3 s
2,5 kA 1 s
design
Horizontal design
connections terminals
Screw clamp terminals
connections - terminals
Screw clamp terminals 63 A 2,5…25 mm² flexible
Screw clamp terminals 63 A 2,5…25 mm² rigid
tightening torque
2 N.m terminal
height
100 mm
width
188 mm
depth
128 mm
standards
EN/IEC 60269-4
EN/IEC 60269-1
EN/IEC 60947-3
EN/IEC 60947-1
EN/IEC 60947-5
product certifications
KEMA-KEUR
IP degree of protection
IP20 IEC 60529
IP65 IEC 60529
IK degree of protection
IK07 EN 50102
IK10 EN 50102
pollution degree
3
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Contractual warranty
Garantii
18 months
