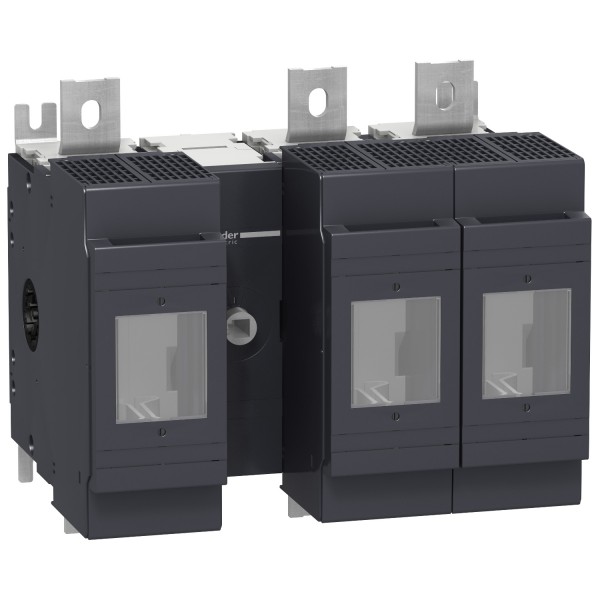

Switch disconnector fuse, FuPact INFB630, 630 A, 3 poles 3F, fuse type BS C1/C2/C3, front control

Ülevaaded: 0

Tootekood: LV480521

Quick Overview

Saadavus: Tellimisel

1 080,82 € (ilma KM-ta)

Details

Main
range of product
INF200...800
range
FuPact
product name
Fupact INF
device short name
INFB630
product or component type
Switch-disconnector-fuse
device application
Protection
poles description
3P
protected poles description
3f
fuse type
BS
fuse size
C1
C2
network type
AC
DC
network frequency
50/60 Hz
Complementary
control type
Operating shaft (without handle)
rotary handle mounting location
Front
mounting mode
Fixed
mounting support
Mounting plate
[Ie] rated operational current
AC-22A 630 A AC 50/60 Hz 220/240 V
AC-22A 630 A AC 50/60 Hz 380/415 V
AC-22A 630 A AC 50/60 Hz 440/480 V
AC-22A 630 A AC 50/60 Hz 500/525 V
AC-22A 630 A AC 50/60 Hz 660/690 V
AC-23A 630 A AC 50/60 Hz 220/240 V
AC-23A 630 A AC 50/60 Hz 380/415 V
AC-23A 630 A AC 50/60 Hz 440/480 V
AC-23A 630 A AC 50/60 Hz 500/525 V
AC-23A 630 A AC 50/60 Hz 660/690 V
DC-22A 630 A DC 250 V 2 poles in series
DC-22A 630 A DC 500 V 3 poles in series
DC-23A 630 A DC 250 V 2 poles in series
DC-23A 630 A DC 500 V 3 poles in series
AC-22A 630 A AC 50/60 Hz 480 V NEMA
AC-23A 630 A AC 50/60 Hz 480 V NEMA
DC-22A 630 A DC 125 V 1 pole
DC-23A 630 A DC 125 V 1 pole
[Ith] conventional free air thermal current
630 A 40 °C ) 60 W vertical
403 A 70 °C ) horizontal
431 A 65 °C ) horizontal
446 A 70 °C ) vertical
457 A 60 °C ) horizontal
476 A 65 °C ) vertical
482 A 55 °C ) horizontal
505 A 50 °C ) horizontal
505 A 60 °C ) vertical
528 A 45 °C ) horizontal
532 A 55 °C ) vertical
549 A 40 °C ) horizontal
558 A 50 °C ) vertical
570 A 35 °C ) horizontal
583 A 45 °C ) vertical
[Ithe] conventional enclosed thermal current
570 A 40 °C 50 W 800 mm x 1000 mm x 330 mm)
630 A 40 °C 60 W
maximum power
AC-23 200 kW 220/240 V AC 50/60 Hz
AC-23 355 kW 380/400 V AC 50/60 Hz
AC-23 355 kW 415 V AC 50/60 Hz
AC-23 450 kW 500/525 V AC 50/60 Hz
AC-23 630 kW 660/690 V AC 50/60 Hz
rated duty
Uninterrupted
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
1000 V DC
[Uimp] rated impulse withstand voltage
12 kV
[Ue] rated operational voltage
690 V AC 50/60 Hz
1000 V AC 50/60 Hz AC-20
1000 V DC DC-20
750 V DC
[Im] rated making and breaking capacity
Icm 220 kA 500 V DIN with fuse)
Icn 100 kA 500 V DIN with fuse)
Icm 176 kA 415 V DIN with fuse)
Icm 176 kA 690 V DIN with fuse)
Icn 80 kA 415 V DIN with fuse)
Icn 80 kA 690 V DIN with fuse)
Icm 55 kA 690 V without fuse)
Icm 77 kA 415 V without fuse)
Icm 83 kA 500 V without fuse)
suitability for isolation
Yes IEC 60947-1
contact position indicator
Yes
contact operation
Double-break
Environment
mechanical durability
5000 cycles
electrical durability
AC-22A 1000 cycles 500 V AC 50/60 Hz
AC-22A 1000 cycles 690 V AC 50/60 Hz
AC-23A 1000 cycles 500 V AC 50/60 Hz
AC-23A 1000 cycles 690 V AC 50/60 Hz
[Icw] rated short-time withstand current
20 kA 1 s
4 kA 30 s
5 kA 20 s
11,6 kA 3 s
design
Horizontal design
connections terminals
Screw connection
connections - terminals
Screw connection M12 630 A
tightening torque
50...75 N.m terminal
30 N.m BS fuse
height
306 mm
width
341 mm
depth
233 mm
standards
EN/IEC 60947-3
EN/IEC 60947-1
IP degree of protection
Fuse compartment IP20
pollution degree
3
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
