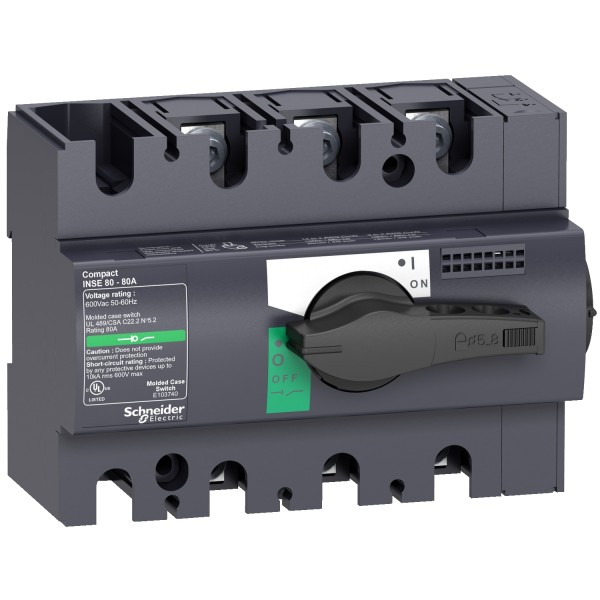

switch-disconnector Interpact INSE80 - 3 poles - 80 A

Product was successfully added to your shopping cart.

switch-disconnector Interpact INSE80 - 3 poles - 80 A

Tootekood: 28998

Quick Overview

Saadavus: Tellimisel

106,20 € (ilma KM-ta)

Qty:

Details

Main
range	Compact
product name	INSE80
switch-disconnector name	Interpact INSE80
poles description	3P
network type	AC
network frequency	50/60 Hz
[Ie] rated operational current	80 A AC 50/60 Hz 600 V
[Uimp] rated impulse withstand voltage	8 kV
[Icm] rated short-circuit making capacity	10 kA protected by any protection device 600 V AC 50/60 Hz 100 kA protected by circuit breaker NSE100 - 100A 240 V AC 50/60 Hz 18 kA protected by circuit breaker NSE100 - 100A 600 V AC 50/60 Hz 50 kA with class T or RK fuses 100 A 600 V AC 50/60 Hz 65 kA protected by circuit breaker NSE100 - 100A 480 V AC 50/60 Hz
[Ue] rated operational voltage	600 V AC 50/60 Hz
suitability for isolation	Yes
contact position indicator	Yes

Complementary
control type	Rotary handle
mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail Plate
upside connection	Front
downside connection	Front
electrical durability	6000 cycles full load
height	100 mm
width	135 mm
depth	62,5 mm
net weight	0,8 kg

Environment
standards	CSA C22.2 No 5.2 UL 489
product certifications	KEMA ASEFA ASTA

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
