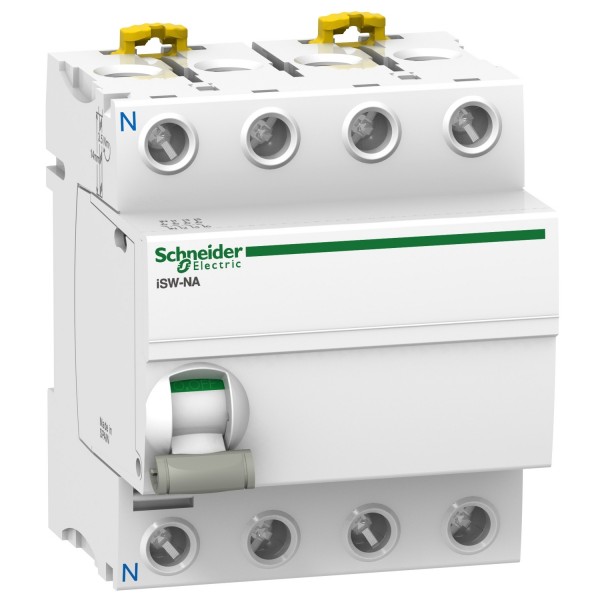

switch-disconnector iSW-NA - 3P + N

Details

Complementary
[Ie] rated operational current	40 A at 400/415 V AC 50/60 Hz
[Ue] rated operational voltage	400/415 V AC 50/60 Hz
[Icm] rated short-circuit making capacity	5 kA switch-disconnector alone
[Icw] rated short-time withstand current	20 kA during 1 s
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-3
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-3
control type	Toggle Remote tripping
local signalling	ON/OFF indication
contact position indicator	Yes
mounting mode	Clip-on
mounting support	DIN rail
comb busbar and distribution block compatibility	Top or bottom: YES
9 mm pitches	8
height	85 mm
width	72 mm
depth	74 mm
net weight	0.3 kg
colour	White
mechanical durability	20000 cycles
electrical durability	10000 cycles
connections - terminals	Tunnel type terminals (top or bottom) 1 cable(s) 1…25 mm² flexible without cable end Tunnel type terminals (top or bottom) 1 cable(s) 1…35 mm² rigid without cable end
wire stripping length	14 mm
tightening torque	3.5 N.m
product compatibility	Tripping release

Environment
standards	IEC 60947-3 EN 60947-3
IP degree of protection	IP20
pollution degree	3 conforming to IEC 60947-3
tropicalisation	2
relative humidity	95 % at 55 °C
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
