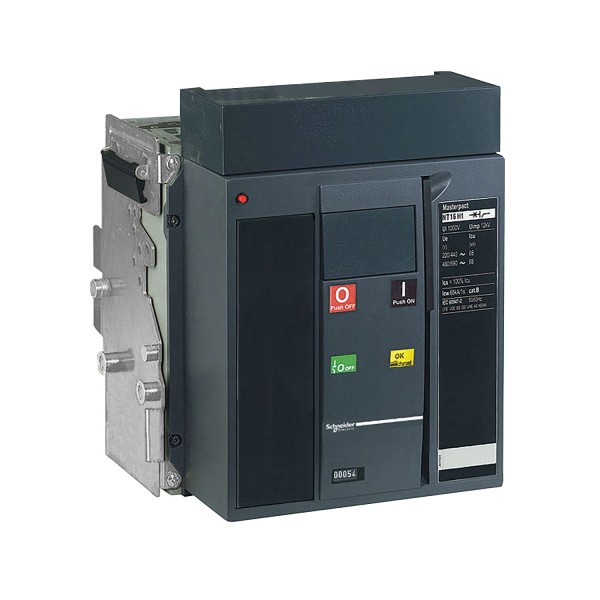

switch-disconnector Masterpact NT10HA - 1000 A - 690 V - 3 poles - drawout

Ülevaaded: 0

Tootekood: 47252

Quick Overview

Saadavus: Tellimisel

2 160,57 € (ilma KM-ta)

Details

Main
range
Masterpact
product name
MasterPact NT
product or component type
Switch disconnector
device short name
Masterpact NT10
switch-disconnector name
Masterpact NT10HA
device application
Protection
poles description
3P
network type
AC
network frequency
50/60 Hz
[Ie] rated operational current
1000 A AC 50/60 Hz 690 V
[Ui] rated insulation voltage
1000 V AC 50/60 Hz IEC 60947-3
[Uimp] rated impulse withstand voltage
12 kVIEC 60947-3
[Icm] rated short-circuit making capacity
75 kA 220...690 V AC 50/60 Hz
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-3
breaking capacity code
HA
suitability for isolation
Yes IEC 60947-3
contact position indicator
Yes
visible break
No
pollution degree
3 IEC 60664-1
Complementary
control type
Push-button
mounting mode
Drawout
mounting support
Chassis
upside connection
Front
downside connection
Front
operating rate
10 cyc/h maximum
[Icw] rated short-time withstand current
20 kA 3 s IEC 60947-3
36 kA 0.5 s IEC 60947-3
36 kA 1 s IEC 60947-3
mechanical durability
12500 cycles without maintenance IEC 60947-3
electrical durability
AC-23A 3000 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-3
AC-23A 6000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-3
AC-3 6000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-3
connection pitch
70 mm
height
301 mm
width
276 mm
depth
196 mm
net weight
14 kg
Environment
standards
IEC 60947-3
product certifications
LCIE
ASEFA
ambient air temperature for operation
-5…70 °C
ambient air temperature for storage
-40…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
