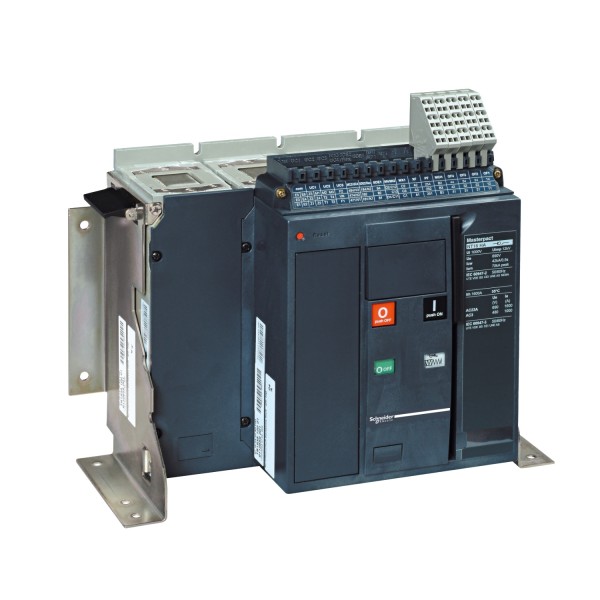

switch-disconnector Masterpact NT12HF - 1200 A - 600 V - 4 poles - fix - UL 489

Product was successfully added to your shopping cart.

switch-disconnector Masterpact NT12HF - 1200 A - 600 V - 4 poles - fix - UL 489

Tootekood: 34042

Quick Overview

Saadavus: Tellimisel

3 683,83 € (ilma KM-ta)

Qty:

Main
range	Masterpact
product name	Masterpact NT UL 489
product or component type	Switch disconnector
device short name	Masterpact NT12
switch-disconnector name	Masterpact NT12HF
device application	Protection
poles description	4P
network type	AC
network frequency	50/60 Hz
[Ie] rated operational current	1200 A AC 50/60 Hz
[Ui] rated insulation voltage	1000 V AC 50/60 Hz conforming to UL 489
[Ue] rated operational voltage	240...600 V AC 50/60 Hz conforming to UL 489
breaking capacity code	HF

Complementary
control type	Push-button
mounting mode	Fixed
operating rate	10 cyc/h maximum
[Icw] rated short-time withstand current	50 kA at 480 V 50 kA at 600 V 65 kA at 220 V
mechanical durability	12500 cycles without maintenance conforming to UL 489
electrical durability	2800 cycles without maintenance
connection pitch	70 mm
height	301 mm
width	346 mm
depth	196 mm
net weight	18 kg
integral instant protection	40 kA

Environment
standards	UL 489
IP degree of protection	IP30
