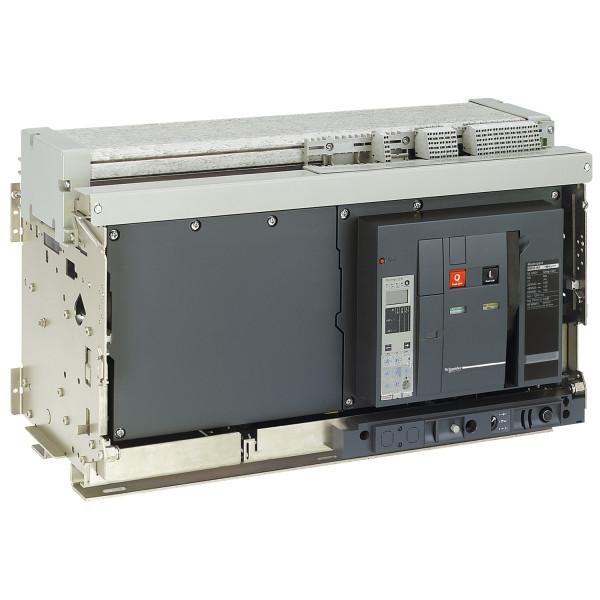

switch-disconnector Masterpact NW40bHA - 4000 A - 690 V - 4 poles - drawout

Ülevaaded: 0

Tootekood: 48341

Quick Overview

Saadavus: Tellimisel

20 721,80 € (ilma KM-ta)

Details

Main
range
Masterpact
product name
Masterpact NW
product or component type
Switch disconnector
device short name
Masterpact NW40b
switch-disconnector name
Masterpact NW40bHA
device application
Protection
poles description
4P
network type
AC
network frequency
50/60 Hz
[Ie] rated operational current
4000 A AC 50/60 Hz 690 V
[Ui] rated insulation voltage
1000 V AC 50/60 Hz IEC 60947-3
[Uimp] rated impulse withstand voltage
12 kVIEC 60947-3
[Icm] rated short-circuit making capacity
187 kA 220...690 V AC 50/60 Hz
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-3
breaking capacity code
HA
suitability for isolation
Yes IEC 60947-3
contact position indicator
Yes
visible break
No
pollution degree
4 IEC 60664-1
Complementary
control type
Push-button
mounting mode
Drawout
mounting support
Chassis
operating rate
10 cyc/h maximum
[Icw] rated short-time withstand current
85 kA 1 s IEC 60947-3
85 kA 3 s IEC 60947-3
mechanical durability
10000 cycles with maintenance IEC 60947-3
5000 cycles without maintenance IEC 60947-3
electrical durability
AC-3 6000 cycles 440/690 V AC 50/60 Hz without maintenance IEC 60947-3
AC-23A 1500 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-3
AC-23A 1500 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-3
connection pitch
230 mm
height
352 mm
width
997 mm
depth
297 mm
net weight
160 kg
Environment
standards
IEC 60947-3
product certifications
ASEFA
ASTA
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-35…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
