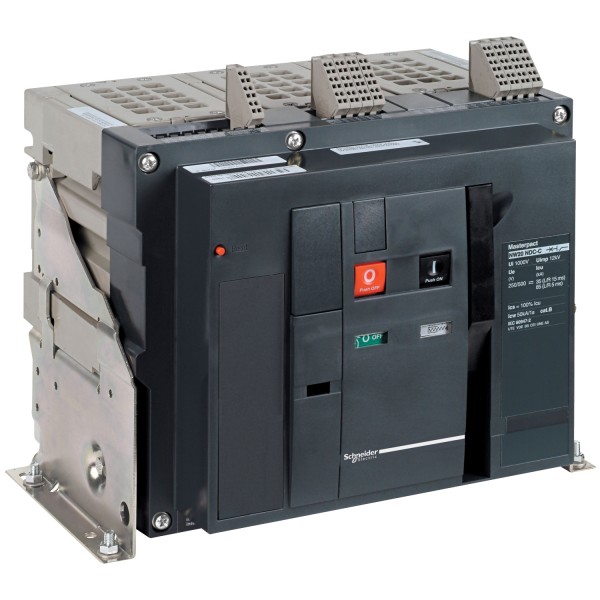

switch-disconnector Masterpact NW40HA10 - 4000 A - 1150 V - 3 poles - drawout

Ülevaaded: 0

Tootekood: 48752

Quick Overview

Saadavus: Tellimisel

13 686,88 € (ilma KM-ta)

Details

Main
range
Masterpact
product name
Masterpact NW
product or component type
Switch disconnector
device short name
Masterpact NW40
switch-disconnector name
Masterpact NW40HA
device application
Protection
poles description
3P
network type
AC
network frequency
50/60 Hz
[Ie] rated operational current
4000 A AC 50/60 Hz 1150 V
[Ui] rated insulation voltage
1250 V AC 50/60 Hz IEC 60947-3
[Uimp] rated impulse withstand voltage
12 kVIEC 60947-3
[Icm] rated short-circuit making capacity
105 kA 1150 V AC 50/60 Hz
[Ue] rated operational voltage
1150 V AC 50/60 Hz IEC 60947-3
breaking capacity code
HA10
suitability for isolation
Yes IEC 60947-3
contact position indicator
Yes
visible break
No
pollution degree
3 IEC 60664-1
Complementary
control type
Push-button
mounting mode
Drawout
mounting support
Chassis
operating rate
10 cyc/h maximum
[Icw] rated short-time withstand current
50 kA 1 s IEC 60947-3
50 kA 3 s IEC 60947-3
mechanical durability
10000 cycles without maintenance IEC 60947-3
20000 cycles with maintenance IEC 60947-3
electrical durability
AC-3 6000 cycles 440/690 V AC 50/60 Hz without maintenance IEC 60947-3
AC-23A 2500 cycles 690 V AC 50/60 Hz without maintenance IEC 60947-3
AC-23A 5000 cycles 440 V AC 50/60 Hz without maintenance IEC 60947-3
connection pitch
150 mm
height
352 mm
width
442 mm
depth
297 mm
net weight
90 kg
Environment
standards
IEC 60947-3
product certifications
ASTA
ASEFA
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-35…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
