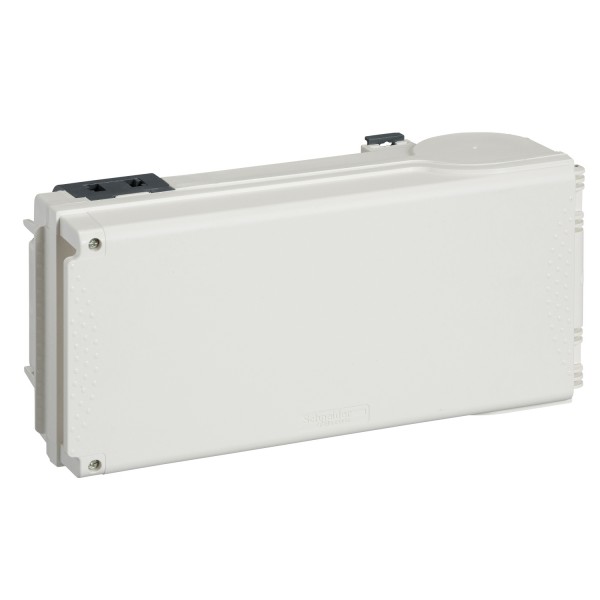

TAPOFF UNIT 25 A WITH ISOLATOR FOR DIN FUSES

Ülevaaded: 0

Tootekood: KNB25SD4

Quick Overview

Saadavus: Tellimisel

190,41 € (ilma KM-ta)

Details

Main
range of product
Canalis
range compatibility
KN busbar trunking
product or component type
Tap-off unit
busbar trunking compatibility
Canalis KN busbar trunking plug-in
[Ie] rated operational current
25 A 35 °C
protection type
fuse isolator: Diazed E27 DIN
provided equipment
fuse to be ordered separately
mounting mode
Plug-in with fixed polarity
tap-off unit polarity
3L+PE
3L+N+PE
colour
White RAL 9001)
Complementary
device application
Low power distribution
[Ue] rated operational voltage
230...500 V depending on protective device
[Uimp] rated impulse withstand voltage
4,6 kV
[Ui] rated insulation voltage
500 V depending on protective device
network frequency
50/60 Hz
electrical connection
Cable clamp terminal - ISO50 16 mm² flexible
Cable clamp terminal - ISO50 16 mm² rigid
door/cover opening side
Right
tap-off unit disconnection mode
By opening the door
standards
IEC 61439-1
IEC 61439-6
width
344 mm
depth
101 mm
depth (door open)
432.5 mm
height
165 mm
net weight
1,5 kg
Environment
IP degree of protection
IP55 IEC 60529
IK degree of protection
IK08 IEC 62262
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu
Halogeenivaba toode
Contractual warranty
Garantii
18 months
