temperature transmitter - 0..600 °C/32..112 °F - for thermocouples J

Product was successfully added to your shopping cart.

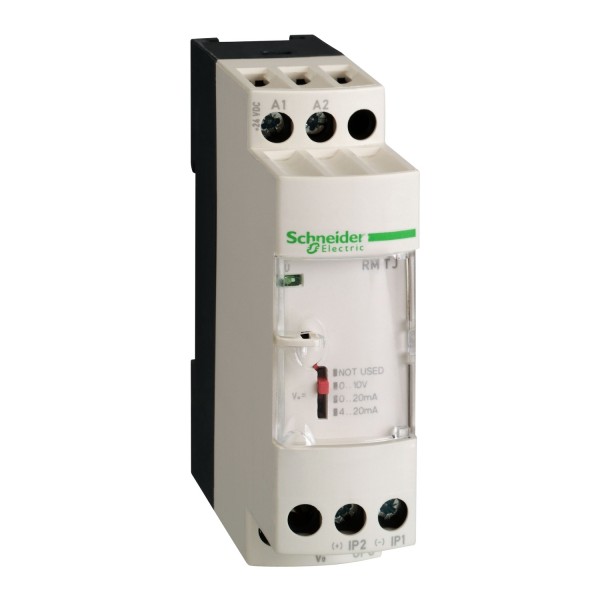

temperature transmitter - 0..600 °C/32..112 °F - for thermocouples J

Tootekood: RMTJ80BD

Quick Overview

Saadavus: Ei saa enam tellida

148,09 € (ilma KM-ta)

Details

Main
range of product	Zelio Analog
product or component type	Converter for thermocouples
analogue input type	Thermocouple 0...600 °C/32...1112 °F thermocouple J IEC 60584
analogue output type	Current 0...20 mA <= 500 Ohm Current 4...20 mA <= 500 Ohm Voltage 0...10 V >= 100 kOhm

Complementary
protection type	Reverse polarity protection on output Overvoltage protection on output (+/- 30 V) Short-circuit protection on output
abnormal analogue output voltage	-15...-11 V no input or input wire broken 11...15 V no input or input wire broken
abnormal analogue output current	-30…0 mA no input or input wire broken
[Us] rated supply voltage	24 V DC +/- 20 %, non isolated
current consumption	<= 40 mA voltage output <= 60 mA current output
local signalling	Power ON LED green)
measurement error	+/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) +/- 1 % of full scale 20 °C
repeat accuracy	+/- 0.25 % full scale 20 °C +/- 0.8 % full scale 60 °C
temperature coefficient	200 ppm/°C
cold junction compensation	Built-in between 0 and 60 °C
clamping connection capacity	2 x 1.5 mm² 1 x 2.5 mm²
tightening torque	0,6…1,1 N.m
marking	CE
surge withstand	0,5 kV 1.2/50 µs IEC 61000-4-5
[Ui] rated insulation voltage	2 kV
fixing mode	By screws mounting plate) Clip-on 35 mm symmetrical DIN rail)
safety reliability data	MTTFd = 49.2 years B10d = 45447
net weight	0,12 kg

Environment
standards	IEC 60584-1 IEC 60947-1
product certifications	UL GL CSA
IP degree of protection	IP20 terminal block) IP50 housing)
fire resistance	850 °C IEC 60695-2-1 850 °C UL
shock resistance	50 gn 11 ms IEC 60068-2-27
vibration resistance	5 gn 10…100 Hz)IEC 60068-2-6
resistance to electrostatic discharge	6 kV in contact)IEC 61000-4-2 level 3 8 kV in air)IEC 61000-4-2 level 3
resistance to fast transients	1 kV IEC 61000-4-4 on input-output) 2 kV IEC 61000-4-4 on power supply)
disturbance radiated/conducted	CISPR 22 group 1 - class B CISPR 11
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	0…50 °C mounting side by side 0…60 °C 2 cm spacing
pollution degree	2 IEC 60664-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
