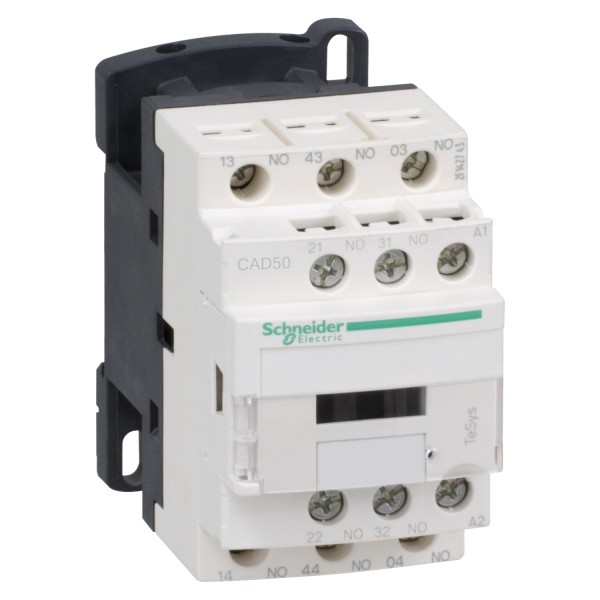

TeSys D control relay - 5 NO - <= 690 V - 110 V DC standard coil

Ülevaaded: 0

Tootekood: CAD50FD

Quick Overview

Saadavus: Tellimisel

32,92 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys CAD
product or component type
Control relay
device short name
CAD
contactor application
Control circuit
Complementary
utilisation category
AC-15
AC-14
DC-13
pole contact composition
5 NO
[Ue] rated operational voltage
<= 690 V AC 25...400 Hz
control circuit type
DC standard
[Uc] control circuit voltage
110 V DC
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
[Ith] conventional free air thermal current
10 A (at 60 °C)
Irms rated making capacity
140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current
100 A - 1 s
120 A - 500 ms
140 A - 100 ms
associated fuse rating
10 A gG conforming to IEC 60947-5-1
[Ui] rated insulation voltage
600 V UL certified
600 V CSA certified
690 V conforming to IEC 60947-5-1
mounting support
Rail
Plate
connections - terminals
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
tightening torque
1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
control circuit voltage limits
Operational: 0.7...1.25 Uc
Drop-out: 0.1...0.25 Uc
operating time
53...72 ms coil energisation and NO closing
16...24 ms coil de-energisation and NO opening
mechanical durability
30 Mcycles
maximum operating rate
180 cyc/mn
time constant
28 ms
inrush power in W
5.4 W (at 20 °C)
hold-in power consumption in W
5.4 W at 20 °C
minimum switching voltage
17 V
minimum switching current
5 mA
non-overlap time
1.5 ms on energisation between NC and NO contact
1.5 ms on de-energisation between NC and NO contact
insulation resistance
> 10 MOhm
mechanical robustness
Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
height
77 mm
width
45 mm
depth
93 mm
net weight
0.58 kg
Environment
standards
BS 4794
EN 60947-5
IEC 60947-5-1
NF C 63-140
VDE 0660
product certifications
CSA
UL
IP degree of protection
IP2x front face conforming to VDE 0106
protective treatment
TH conforming to IEC 60068
ambient air temperature for operation
-40…70 °C
ambient air temperature for storage
-60…80 °C
operating altitude
3000 m without
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
