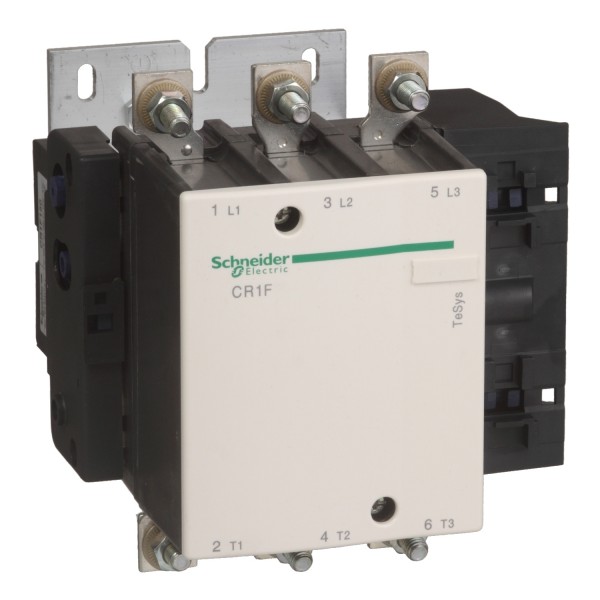

TeSys F magnetic latching contactor - 3P(3 NO) - 150 A

Details

Main
range	TeSys
product name	TeSys F
product or component type	Magnetic latching contactor
device short name	CR1F
device application	Control
contactor application	Resistive load Motor control
utilisation category	AC-3 AC-1 AC-4
poles description	3P
power pole contact composition	3 NO
[Ue] rated operational voltage	1000 V AC 25...200 Hz
[Ie] rated operational current	150 A 40 °C) <= 440 V AC AC-3 250 A 40 °C) <= 440 V AC AC-1 138 A 40 °C) <= 440 V AC AC-4
motor power kW	75 kW 400 V AC 50/60 Hz AC-4)
control circuit type	AC 50...400 Hz DC standard
[Uc] control circuit voltage	220...230 V AC 50...400 Hz 220...230 V DC
Irms rated making capacity	1700 A
rated breaking capacity	1500 A 220...440 V 1200 A 500 V 450 A 1000 V 1100 A 660/690 V
[Icw] rated short-time withstand current	1200 A 40 °C - 1 s 1200 A 40 °C - 5 s 1200 A 40 °C - 10 s 700 A 40 °C - 30 s 600 A 40 °C - 1 min 450 A 40 °C - 3 min 350 A 40 °C - 10 min
associated fuse rating	160 A aM <= 440 V 250 A BS88 <= 440 V 250 A gG <= 440 V
average impedance	0,45 mOhm - Ith 250 A 50 Hz
[Ui] rated insulation voltage	1000 V IEC 60158-1 1000 V IEC 60947-4 1000 V BS 775 1500 V VDE 0110 group C
power dissipation per pole	6 W AC-3 18 W AC-1
connections - terminals	lugs-ring terminals 1 120 mm² connector 1 120 mm² bars 2 25 x 3 mm Power circuit bolted connection
tightening torque	18 N.m
operating time	35...40 ms latching 50...100 ms unlatching
mechanical durability	1 Mcycles
maximum operating rate	120 cyc/h 40 °C

Complementary
control circuit voltage limits	Latching 0.85...1.1 Uc Unlatching 0.85...1.1 Uc
average consumption	1260 VA AC 50...400 Hz latching 10 VA AC 50...400 Hz unlatching 1260 VA DC latching 10 VA DC unlatching

Environment
protective treatment	TC
ambient air temperature for operation	-15…70 °C
ambient air temperature for storage	-60…80 °C
operating altitude	3000 m without
height	170 mm
width	163,5 mm
depth	171 mm
net weight	3,5 kg

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
