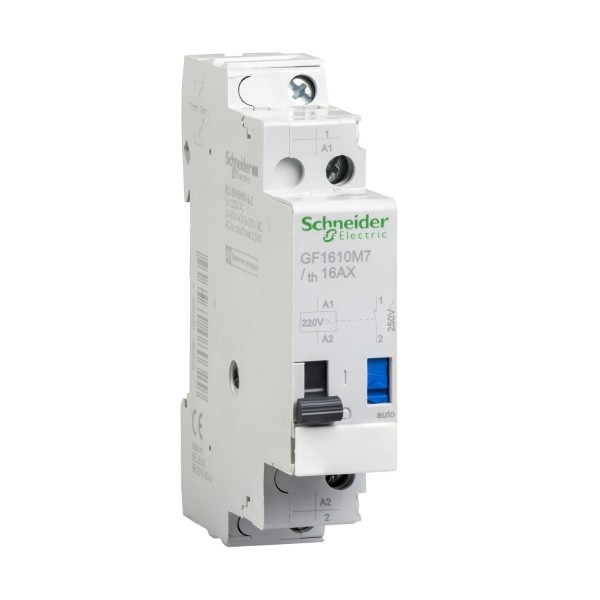

TeSys GF - impulse relay - 16 A - 1 NO - 220 V AC 50/60 Hz coil

Ülevaaded: 0

Tootekood: GF1610M7

Quick Overview

Saadavus: Ei saa enam tellida

22,45 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys GF
product or component type
Impulse relay
device short name
GF16
utilisation category
AC-1
poles description
1P
pole contact composition
1 NO
[Ie] rated operational current
16 A AC-1
[Ue] rated operational voltage
250 V AC 50/60 Hz
permissible short-time rating
320 A 40 °C 1 s
48 A 40 °C 30 s
96 A 40 °C 10 s
operating position
+/- 90° to vertical plane
control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
220 V AC 50/60 Hz
mounting mode
Clip-on
mounting support
35 mm symmetrical DIN rail
Complementary
[Ith] conventional free air thermal current
16 A (at 50 °C)
average impedance
4 mOhm at 50 Hz - Ith 16 A
[Ui] rated insulation voltage
400 V conforming to IEC 60947-5-1
400 V conforming to VDE 0110
[Uimp] rated impulse withstand voltage
4 kV in enclosure
connections - terminals
Control circuit: screw clamp terminals 1 cable(s) 1.5 mm² solid without cable end
Control circuit: screw clamp terminals 1 cable(s) 2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1.5 mm² solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 2.5 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 0.5…6 mm² flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 0.5…6 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 0.5…6 mm² solid without cable end
Power circuit: screw clamp terminals 2 cable(s) 0.5…4 mm² flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 0.5…4 mm² flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 0.5…4 mm² solid without cable end
tightening torque
Control circuit: 0.8 N.m - on screw clamp terminals
Power circuit: 0.8 N.m - on screw clamp terminals
operating time
70 ms closing
70 ms opening
maximum operating rate
900 cyc/h
control circuit voltage limits
0.85...1.1 Uc 50 °C 50/60 Hz
impulse duration
>= 70 ms
average consumption
19 VA AC 50 Hz at at Uc at 20 ºC
power dissipation per pole
1 W
mechanical durability
1 Mcycles
electrical durability
100000 cycles AC-22
200000 cycles AC-21
9 mm pitches
2
height
81 mm
width
18 mm
depth
64 mm
net weight
0.11 kg
quantity per set
Set of 12
Environment
standards
NF C 61-112
IEC 60669-1
IEC 60669-2
IP degree of protection
IP40 conforming to VDE 0106 (in enclosure)
IP20 conforming to VDE 0106
protective treatment
TC
ambient air temperature for operation
-20…50 °C
ambient air temperature for storage
-40…80 °C
operating altitude
<= 2000 m without
mechanical robustness
Vibrations contactor open: 4 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Offer Sustainability
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
