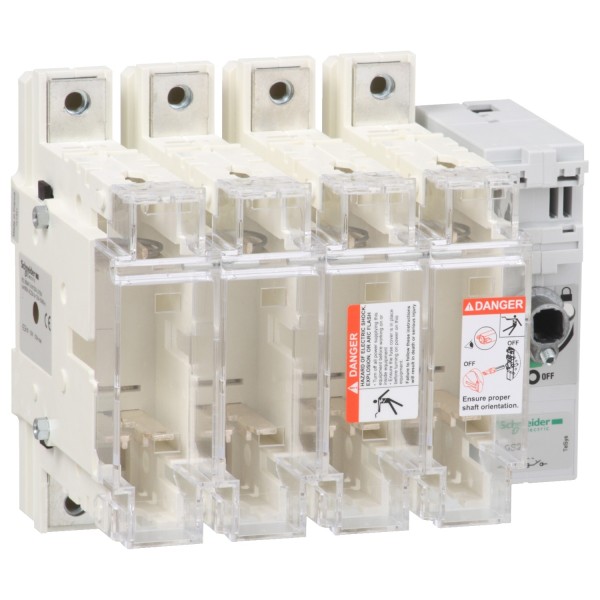

TeSys GS - switch-disconnector-fuse - 4 P - 160A - DIN 0

Ülevaaded: 0

Tootekood: GS2L4

Quick Overview

Saadavus: Tellimisel

303,53 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys GS
device short name
GS2L
product or component type
Switch-disconnector-fuse
poles description
4P
protected poles description
4t
contacts type and composition
4 NO
[Ith] conventional free air thermal current
160 A 40 °C
[Ie] rated operational current
125 A 440 V 2 poles in series per phase DC-23A
125 A 440 V 2 poles in series per phase DC-23B
125 A 690 V AC-23A
125 A 690 V AC-23B
160 A 400 V AC-23A
160 A 400 V AC-23B
160 A 500 V AC-23A
160 A 500 V AC-23B
fuse type
DIN
fuse size
0
network type
DC
AC
network frequency
50/60 Hz
Complementary
type of operating handle
External frontal
External right side
mounting support
Plate
[Ui] rated insulation voltage
750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
rated operational power in W
80 kW 400 V
110 kW 500 V
110 kW 690 V
making capacity
1600 A 400 V AC-23B
[Icm] rated short-circuit making capacity
100 kA 400 V with protection by gG fuses
breaking capacity
1280 A 400 V AC-23B)
short-circuit withstand
20 kA
mechanical durability
10000 cycles
electrical durability
1000 cycles AC-23A
1000 cycles AC-23B
200 cycles DC-23A
200 cycles DC-23B
connections - terminals
Power circuit bars 20 mm²
Power circuit lugs-ring terminals 50…95 mm²
tightening torque
Power circuit 12 N.m
Environment
standards
IEC 60947-3
product certifications
CE
IP degree of protection
IP20 IEC 60529 with terminal cover)
ambient air temperature for operation
-20…70 °C
ambient air temperature for storage
-40…80 °C
fire resistance
850 °C fuse cover IEC 60695-2-1
960 °C body IEC 60695-2-1
height
162 mm
width
240 mm
depth
136,5 mm
net weight
2,3 kg
Offer Sustainability
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
