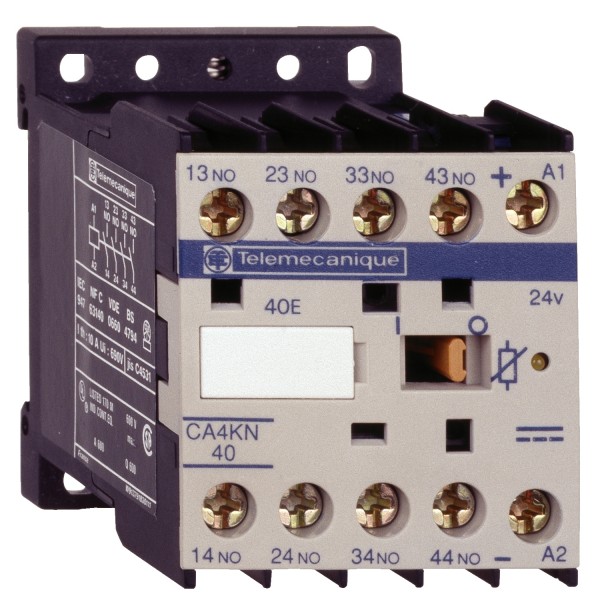

TeSys K control relay - 4 NO - <= 690 V - 110 V DC low consumption coil

Ülevaaded: 0

Tootekood: CA4KN40FW3

Quick Overview

Saadavus: Tellimisel

24,17 € (ilma KM-ta)

Details

Main
range
TeSys
product name
TeSys CAK
product or component type
Control relay
device short name
CA4K
contactor application
Control circuit
utilisation category
AC-15
DC-13
pole contact composition
4 NO
[Ue] rated operational voltage
<= 690 V <= 400 Hz
control circuit type
DC low consumption
[Uc] control circuit voltage
110 V DC
Complementary
coil technology
Built-in bidirectional peak limiting diode suppressor
[Ith] conventional free air thermal current
10 A (at 50 °C)
Irms rated making capacity
110 A conforming to IEC 60947
associated fuse rating
10 A gG conforming to IEC 60947
10 A gG conforming to VDE 0660
[Ui] rated insulation voltage
690 V conforming to IEC 60947
750 V conforming to VDE 0110 group C
690 V conforming to BS 5424
600 V conforming to CSA C22.2 No 14
mounting support
Rail
Plate
connections - terminals
Screw clamp terminals 1 cable(s) 1.5…4 mm²solid
Screw clamp terminals 2 cable(s) 1.5…4 mm²solid
Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible without cable end
tightening torque
1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm
control circuit voltage limits
Drop-out: 0.1...0.75 Uc (at <50 °C)
Operational: 0.7...1.3 Uc (at <50 °C)
operating time
10...20 ms coil de-energisation and NO opening
30...40 ms coil energisation and NO closing
mechanical durability
30 Mcycles
maximum operating rate
6000 cyc/h
immunity to microbreaks
2 ms
inrush power in W
1.8 W (at 20 °C)
hold-in power consumption in W
1.8 W at 20 °C
heat dissipation
1.8 W
minimum switching voltage
17 V
minimum switching current
5 mA
non overlap distance
0.5 mm
insulation resistance
> 10 MOhm
height
58 mm
width
45 mm
depth
57 mm
net weight
0.235 kg
Environment
standards
BS 5424
IEC 60947
NF C 63-140
VDE 0660
product certifications
UL
CSA
IP degree of protection
IP2x
protective treatment
TC conforming to IEC 60068
ambient air temperature for operation
-25…50 °C
ambient air temperature for storage
-50…80 °C
operating altitude
2000 m without
flame retardance
V1 conforming to UL 94
Requirement 2 conforming to NF F 16-101
Requirement 2 conforming to NF F 16-102
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
